2. Column Biaxial Bending Interaction Diagram - spColumn Software

spColumn is a StructurePoint software program that performs the analysis and design of reinforced concrete sections subjected to axial force combined with uniaxial or biaxial bending. Using the provisions of the Strength Design Method and Unified Design Provisions, slenderness considerations are used for moment magnification due to second order effect (P-Delta) for sway and non-sway frames.

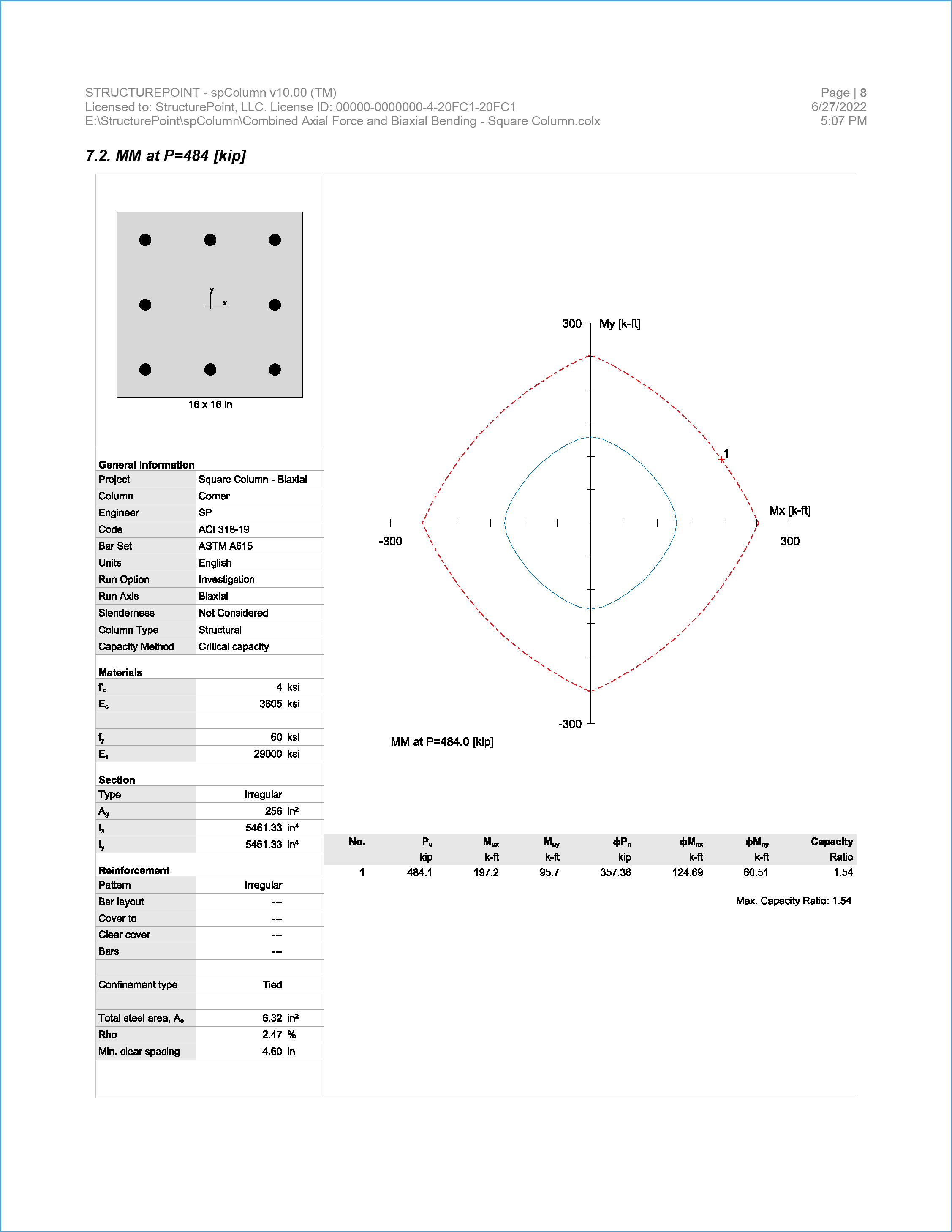

For biaxial runs, the values of maximum compressive axial load capacity and maximum tensile load capacity are computed. These two values set the range within which the moment capacities are computed for a predetermined number of axial load values. For each level of axial load, the section is rotated in 10-degree increments from 0 degrees to 360 degrees and the M_x and M_y moment capacities are computed. Thus, for each level of axial load, an M_x-M_y contour is developed. Repeating this for the entire range of axial loads, the three-dimensional failure surface is computed. A three-dimensional visualization of the resulting entire nominal and factored failure surface is provided to support enhanced understanding of the section capacity.

The “biaxial” feature allows the user to investigate the P-M interaction diagrams, the M_x-M_y moment contour plots, as well as the 3D failure surface for even the most irregular column and shear wall sections quickly, simply, and accurately.

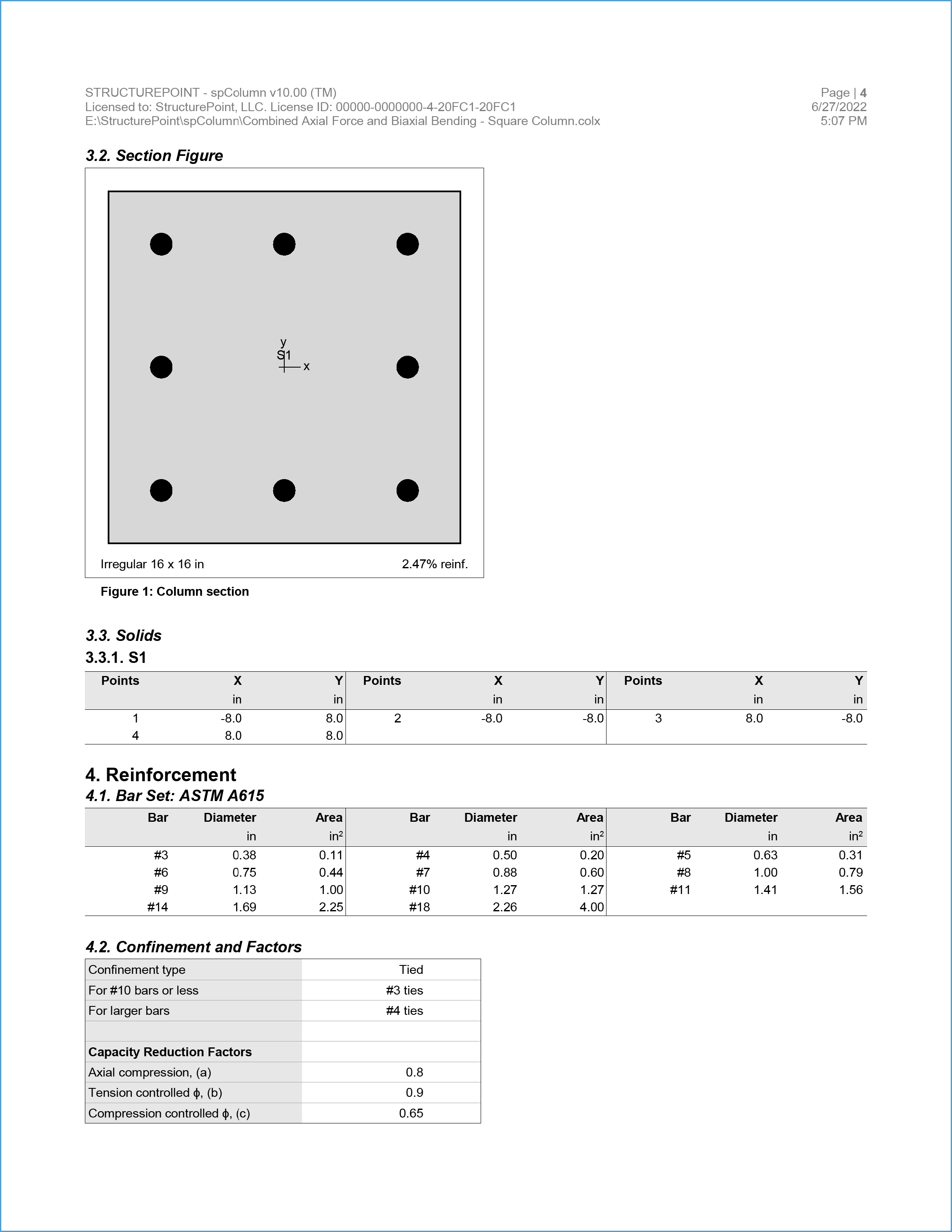

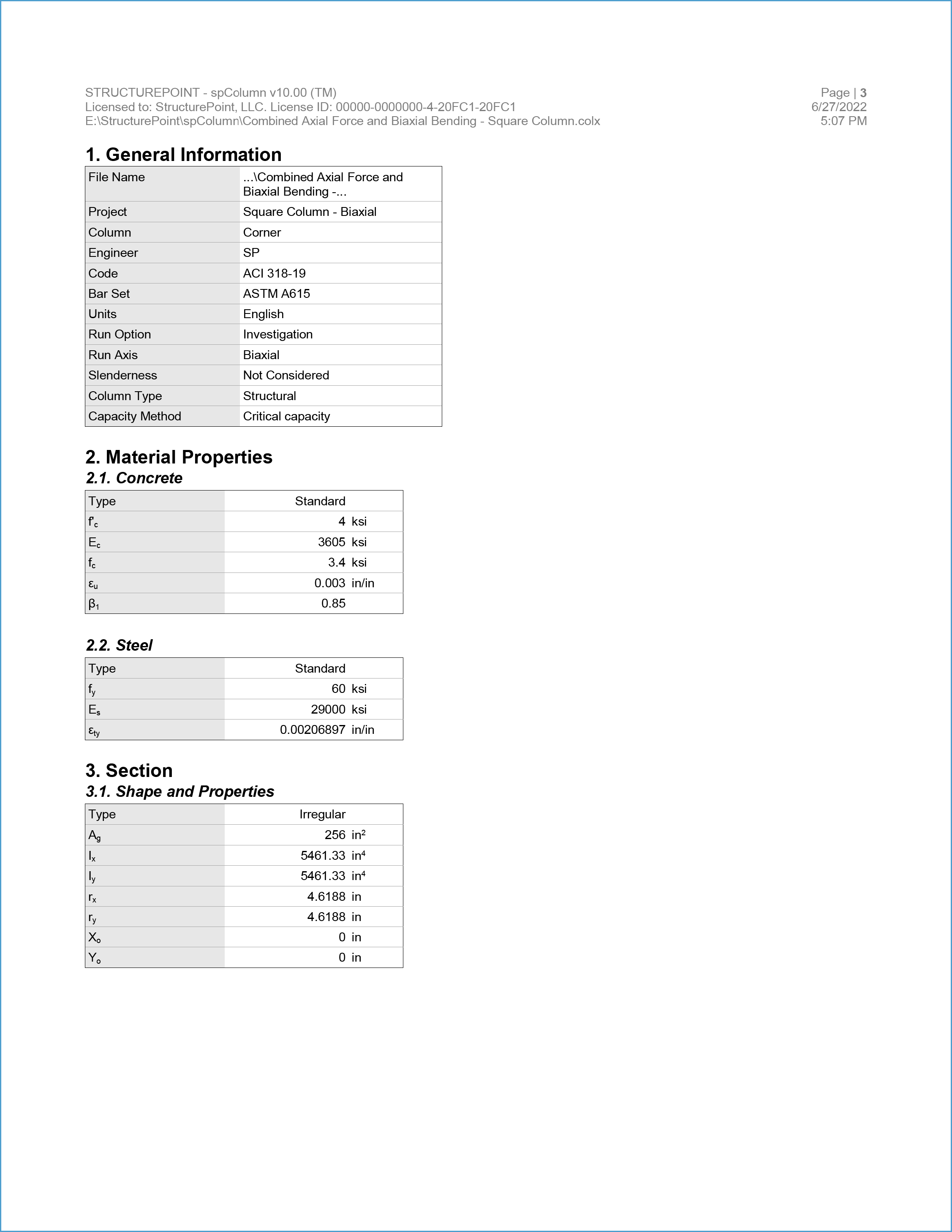

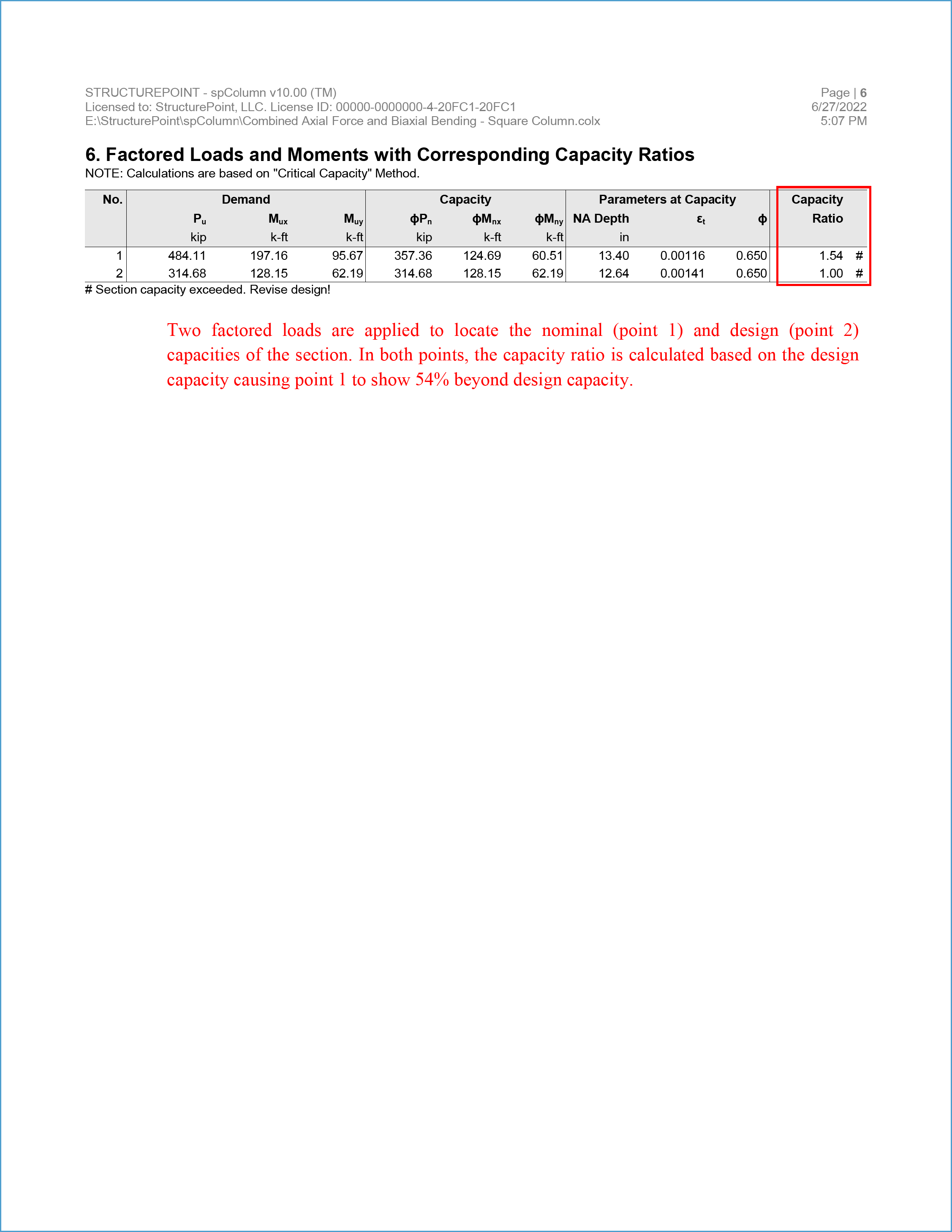

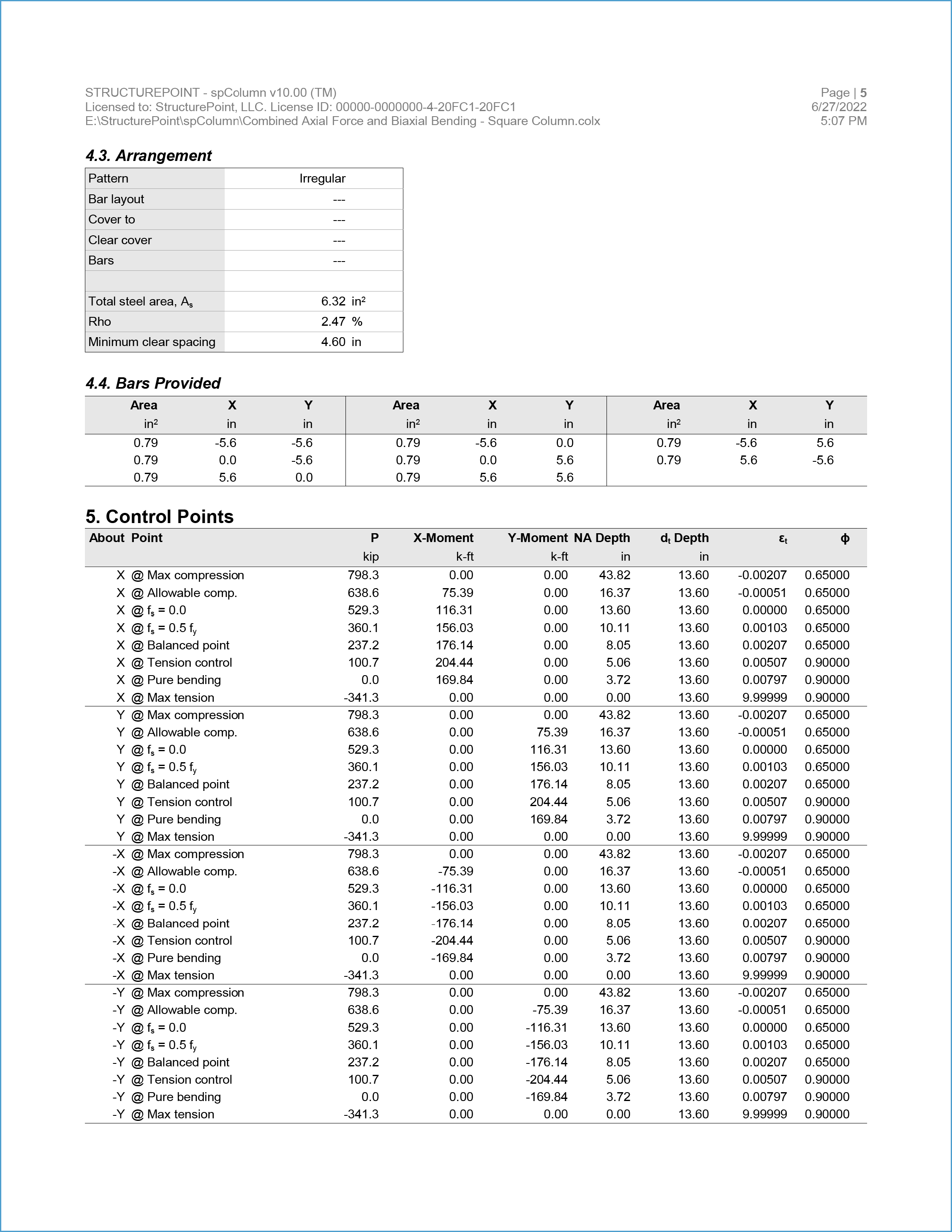

For this column section, we ran in investigation mode with “biaxial” option for “Run Axis” using the ACI 318-19.

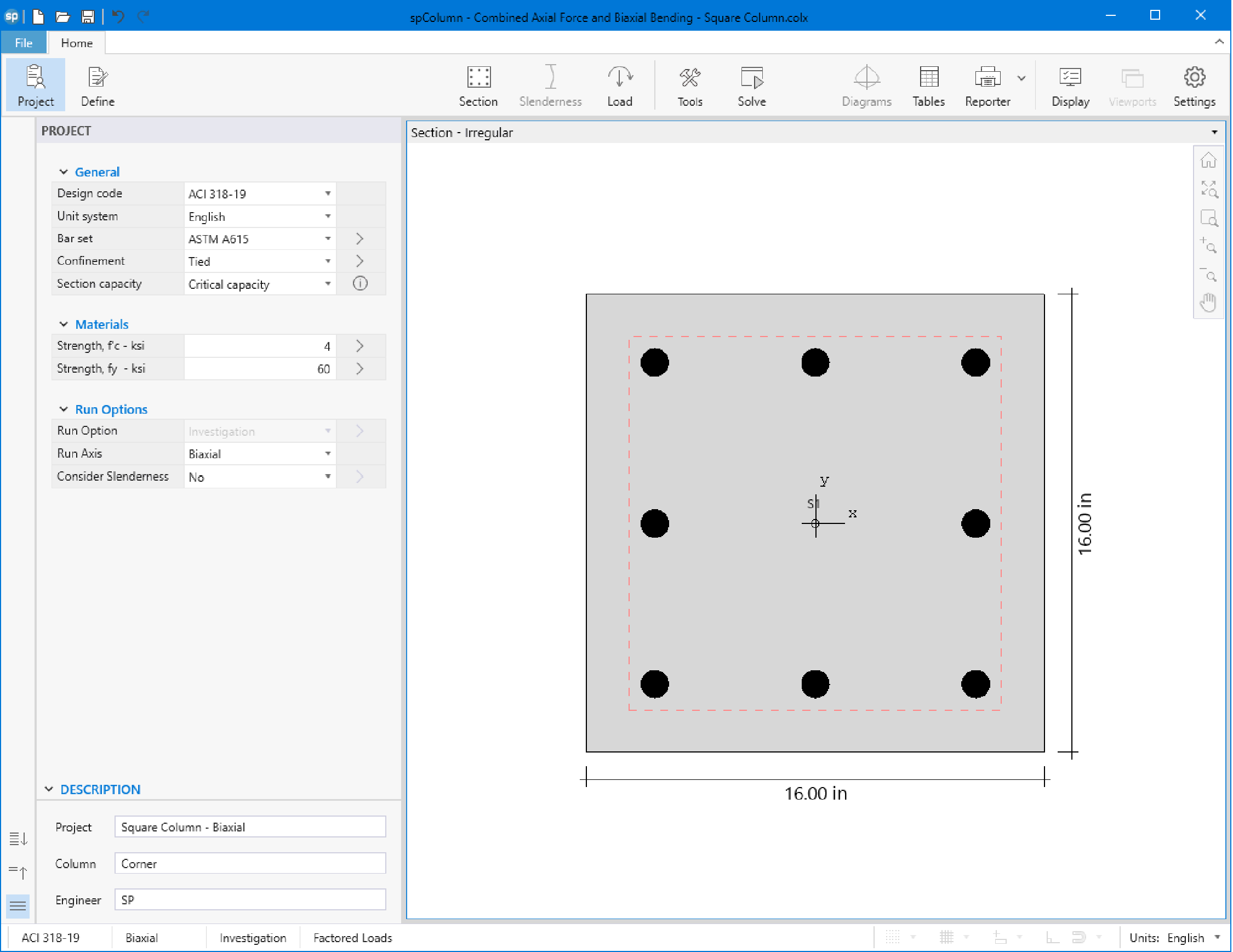

Figure 6 - spColumn Interface

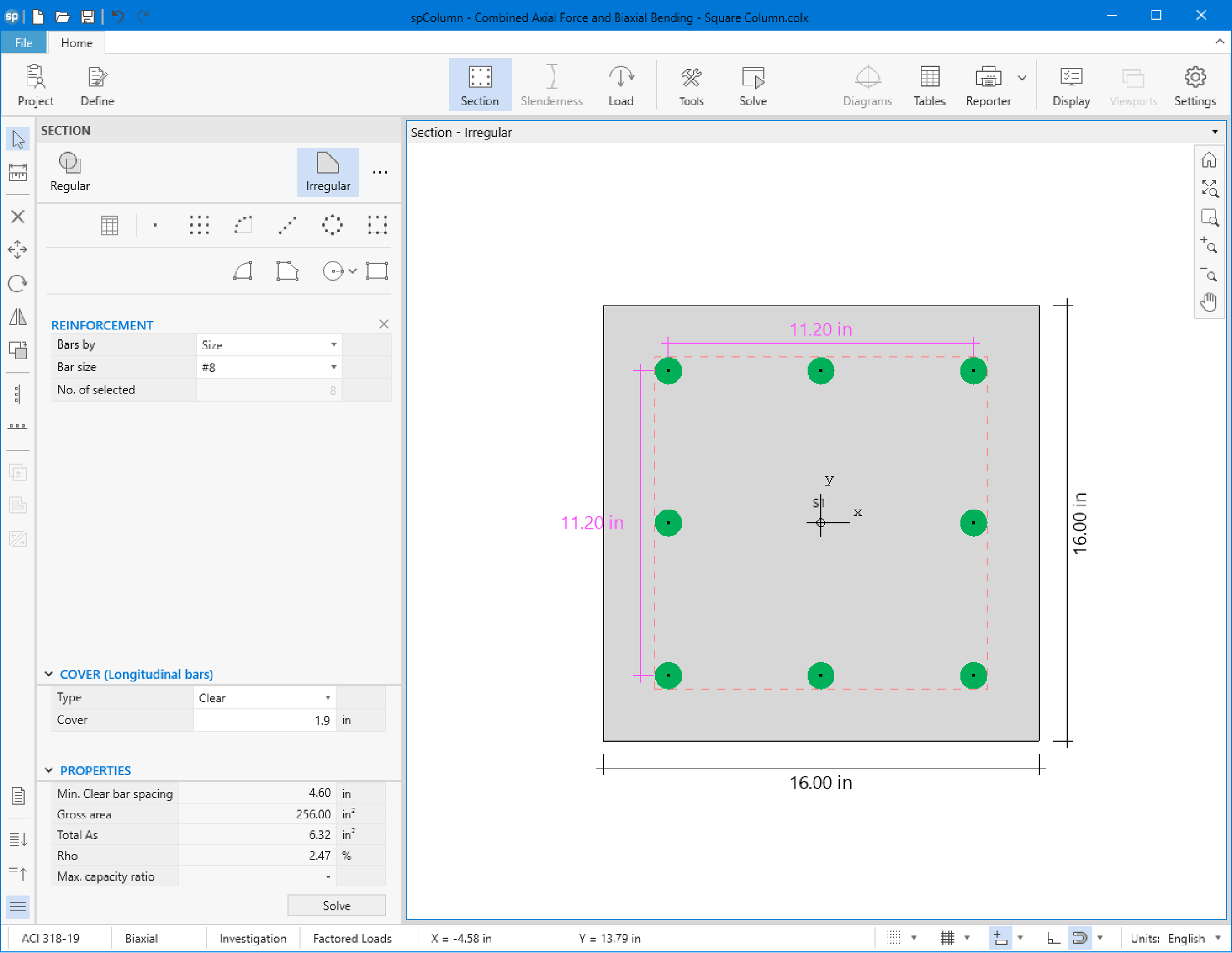

Figure 7 - spColumn Model Editor

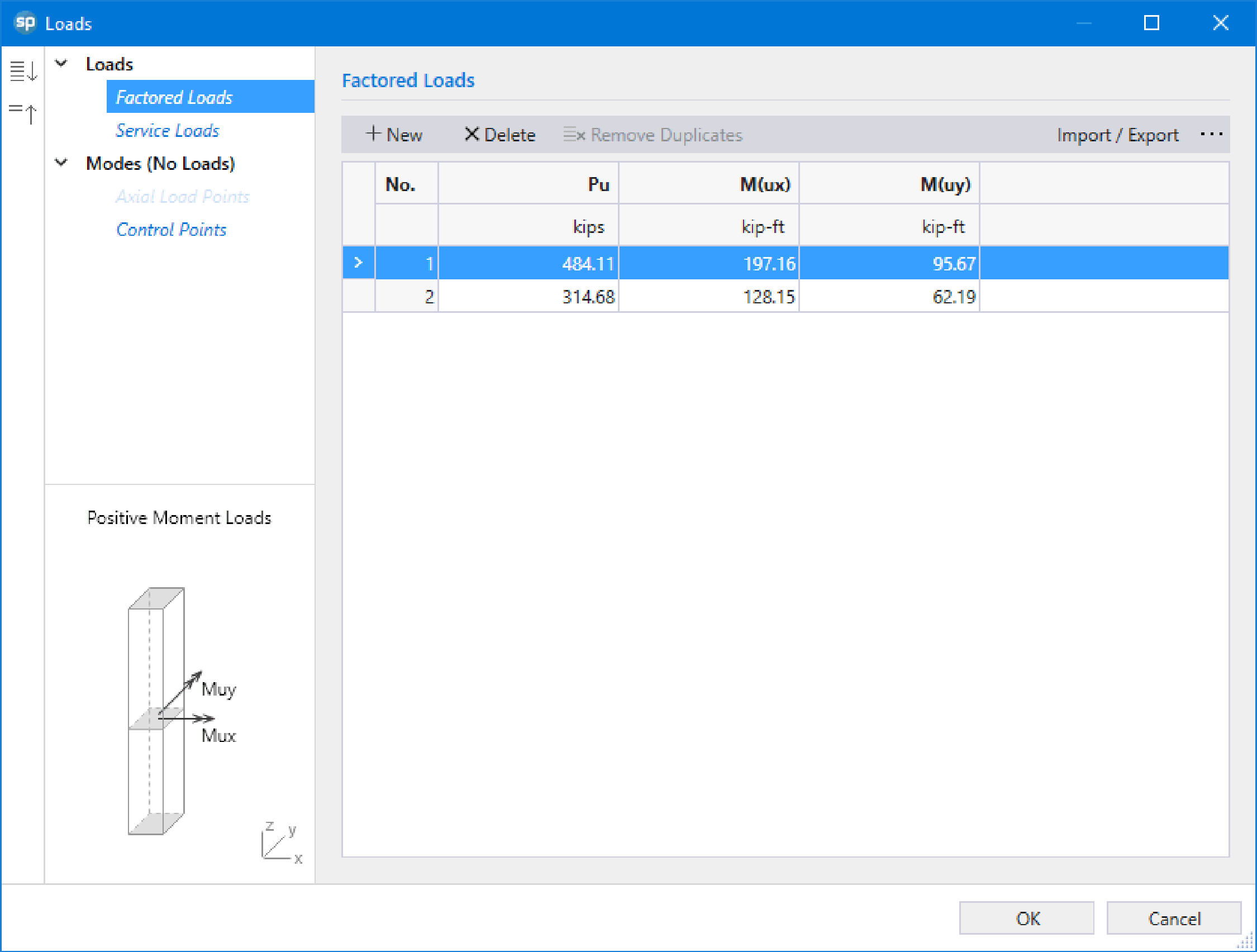

Figure 8 - Defining Loads / Modes (spColumn)

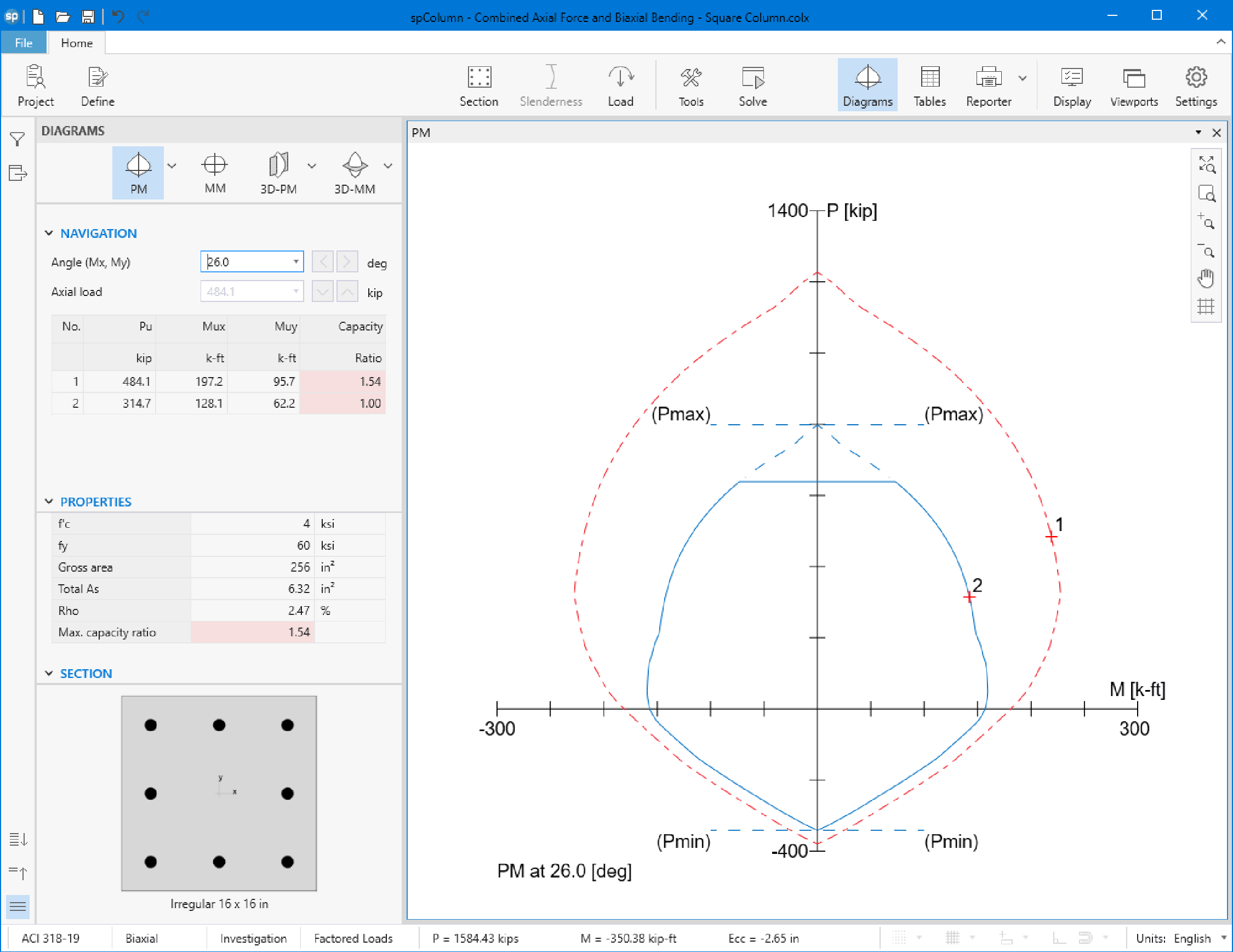

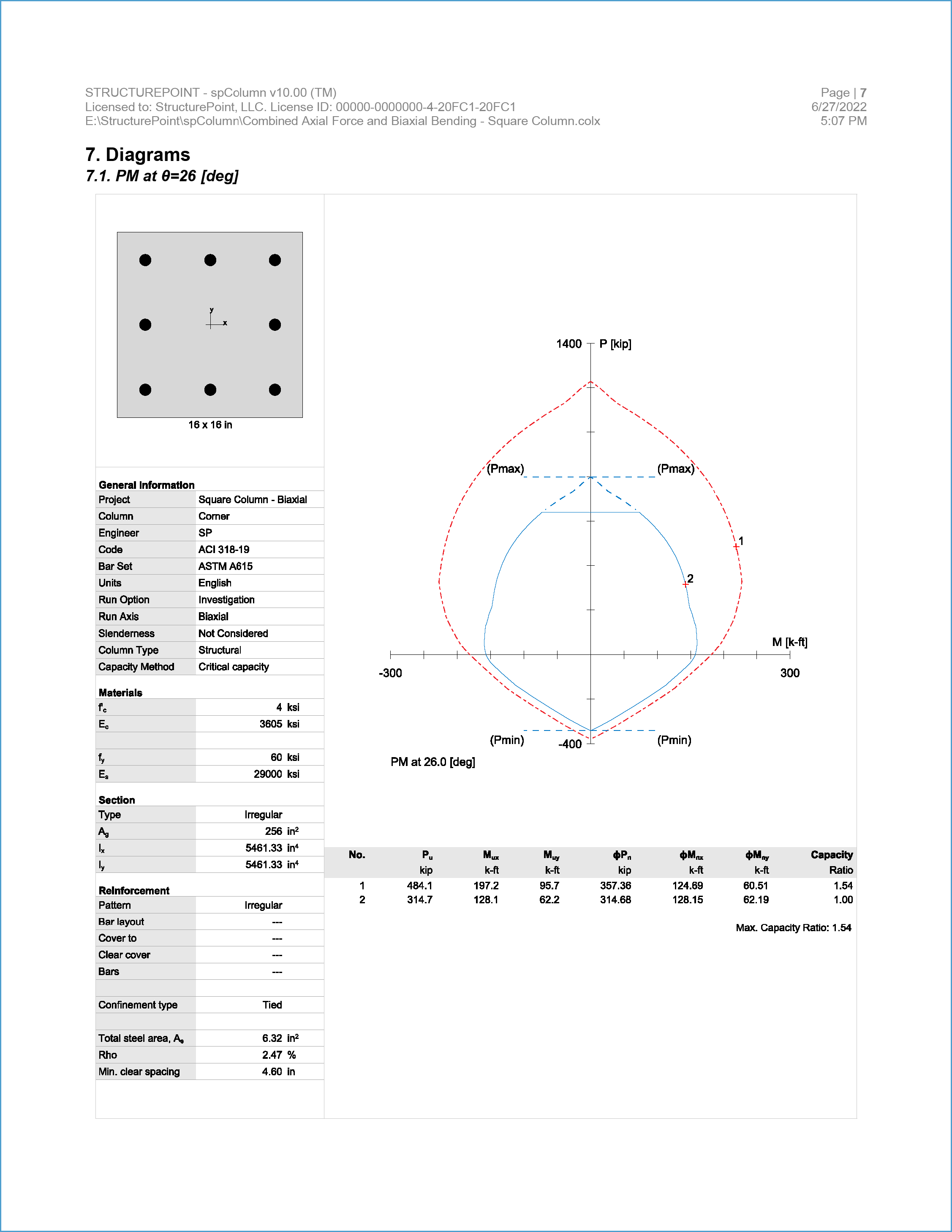

Figure 9 - Column Section Interaction Diagram at 26º (spColumn)
