10. Conclusions & Observations

The analysis of the reinforced concrete section performed by spColumn conforms to the provisions of the Strength Design Method and Unified Design Provisions with all conditions of strength satisfying the applicable conditions of equilibrium and strain compatibility.

In the calculation shown above a P-M interaction diagram was generated with moments about the X-Axis. Since the section and reinforcement distribution are not symmetrical, a different P-M interaction diagram is required for the other orthogonal direction (where moments are about the Y-Axis) (The following Figures illustrate the two conditions for the case where f_s = f_y).

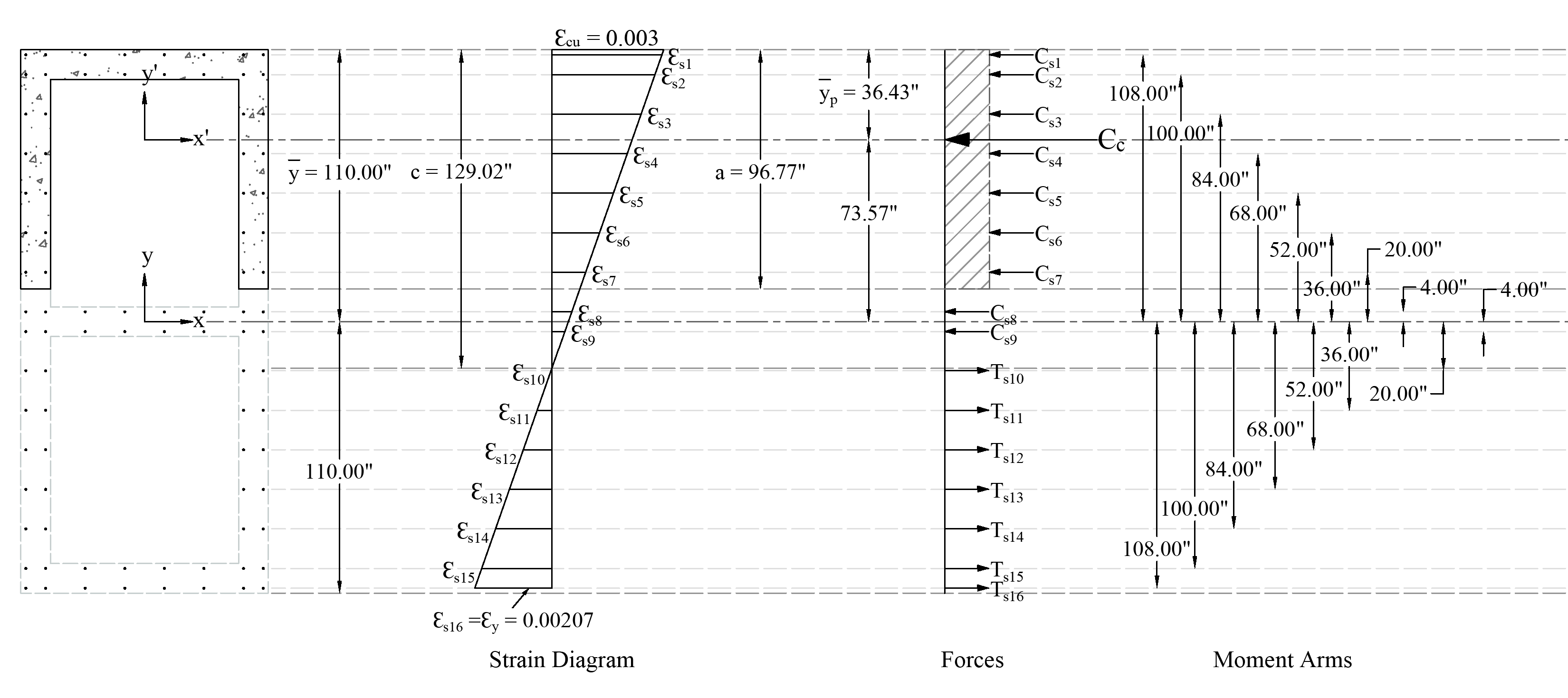

Figure 14 - Strains, Forces, and Moment Arms (f_s = f_y Moments About X-Axis)

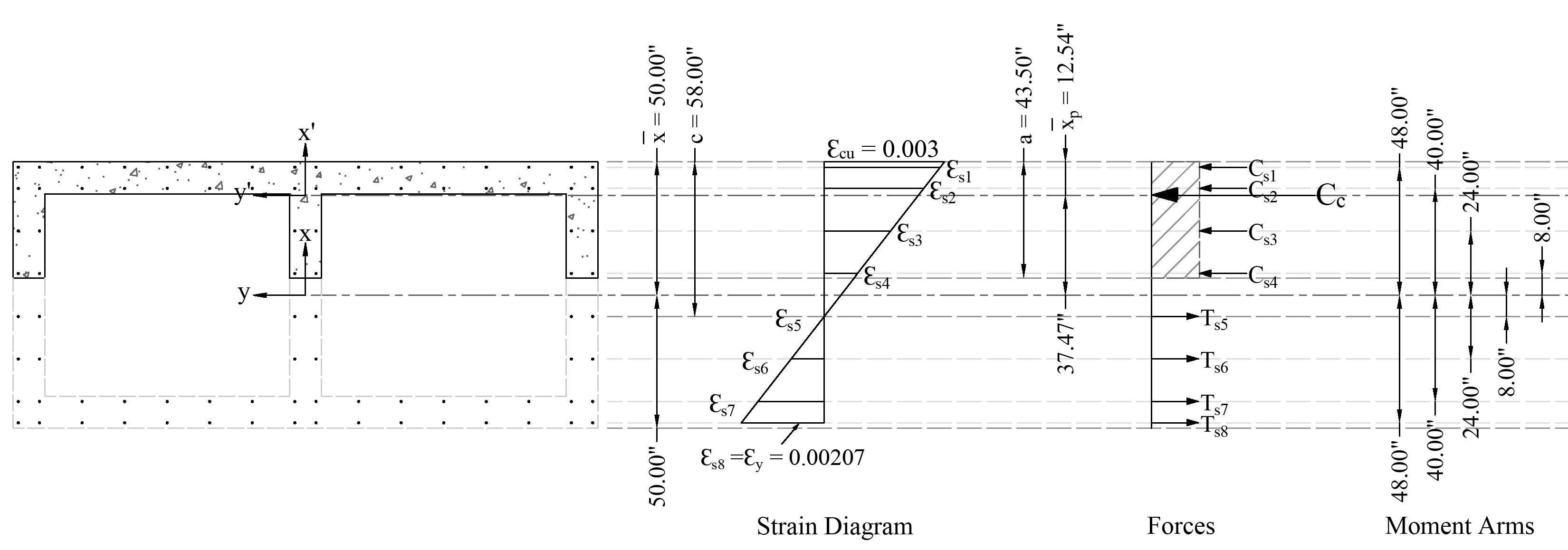

Figure 15 - Strains, Forces, and Moment Arms (f_s = f_y Moments About Y-axis)

When running about the y-axis in spColumn, 8 layers of reinforcement are participating, instead of 16 layers of reinforcement when running about x-axis, resulting in a completely different P-M interaction diagram as shown in the following spColumn output. The P-M diagram about x-axis and y-axis are symmetrical since the section is also symmetrical.

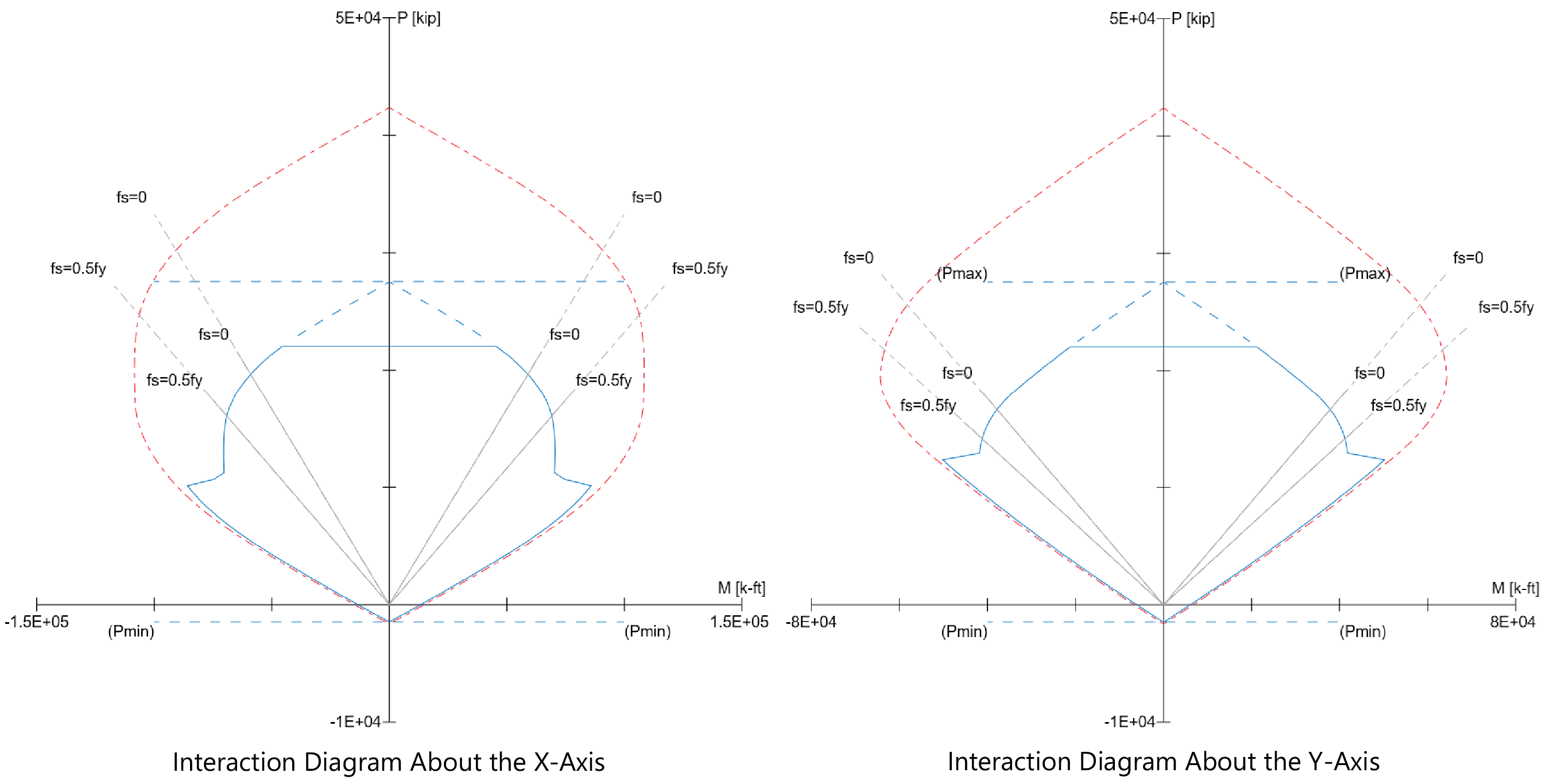

Figure 16 - Comparison of Core Wall Interaction Diagrams about X-Axis and Y-Axis (spColumn)

In most building design calculations, such as the examples shown in the StructurePoint website, all building columns and walls are subjected to M_x and M_y due to lateral forces and unbalanced moments from both directions of analysis. This requires an evaluation of the column or wall P-M interaction diagram in two directions simultaneously (biaxial bending) instead of the uniaxial investigation illustrated here.

StucturePoint’s spColumn program can also investigate column and wall sections in biaxial mode to produce the results shown in the following Figure for the wall section in this example. In biaxial run mode, M_x and M_y diagrams at each axial force level can be viewed in 2D and 3D views.

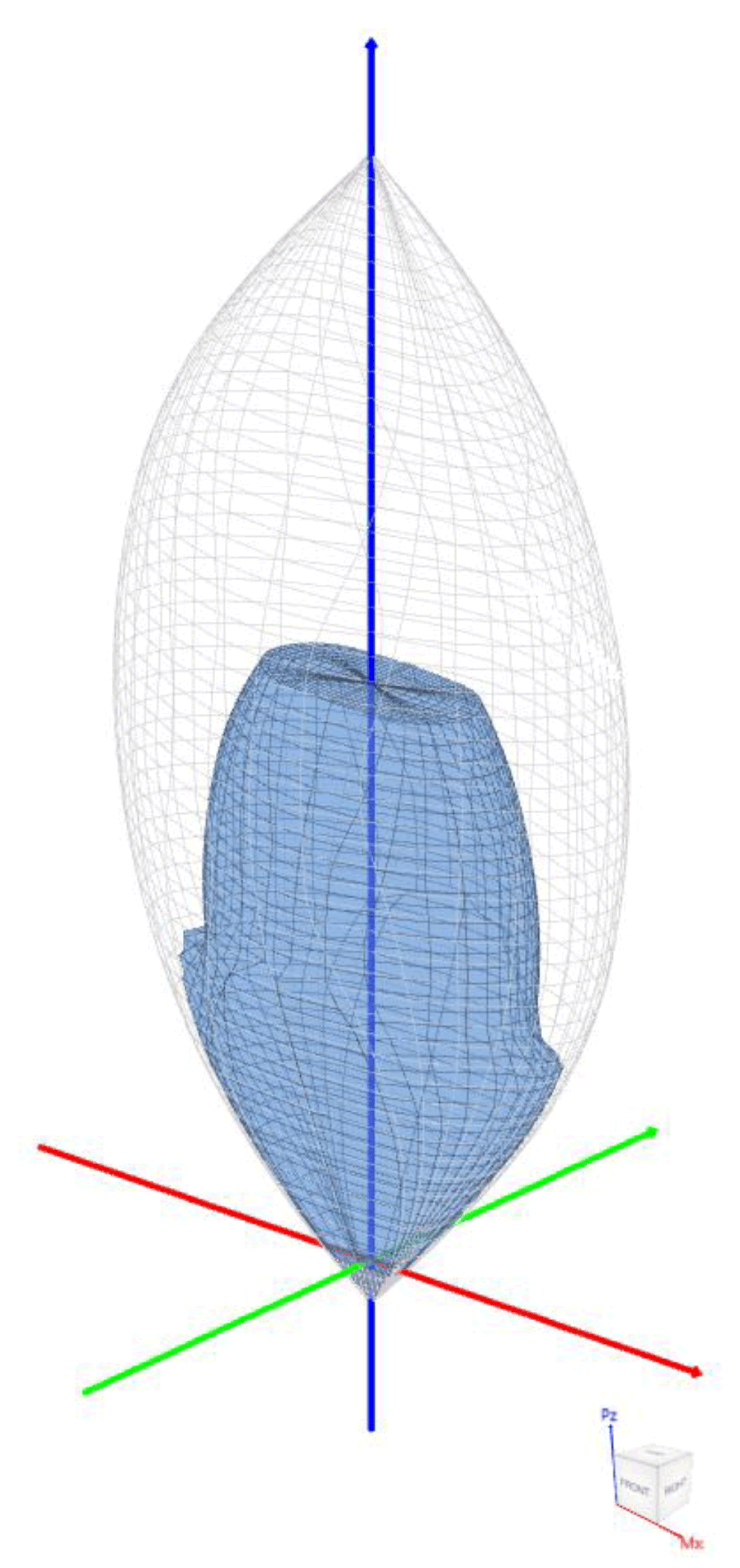

Figure 17 - Core Wall Nominal & Design 3D failure Surfaces (Biaxial) (spColumn)

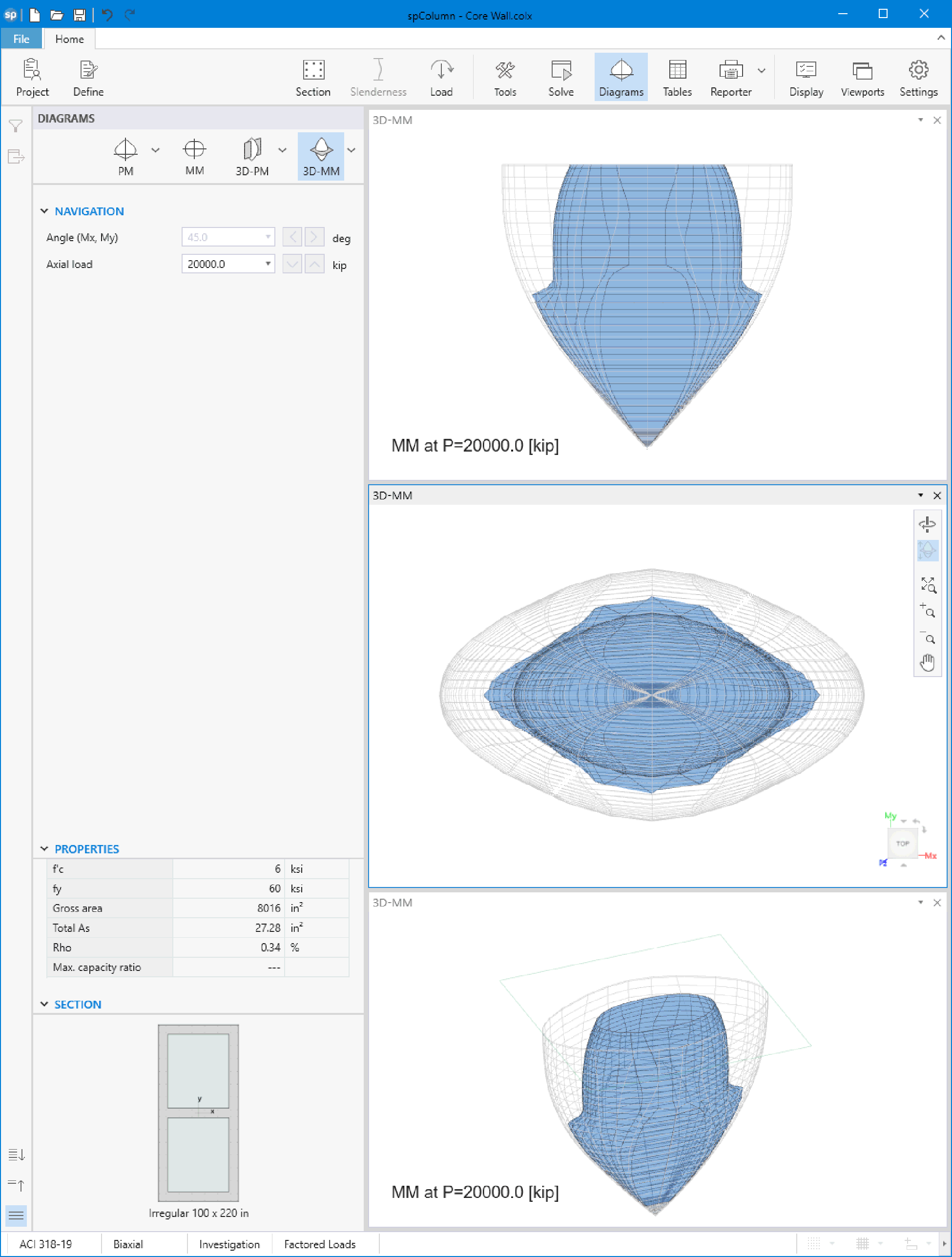

Figure 18 - Core Wall Interaction Diagram and 3D failure Surface Viewer (spColumn)

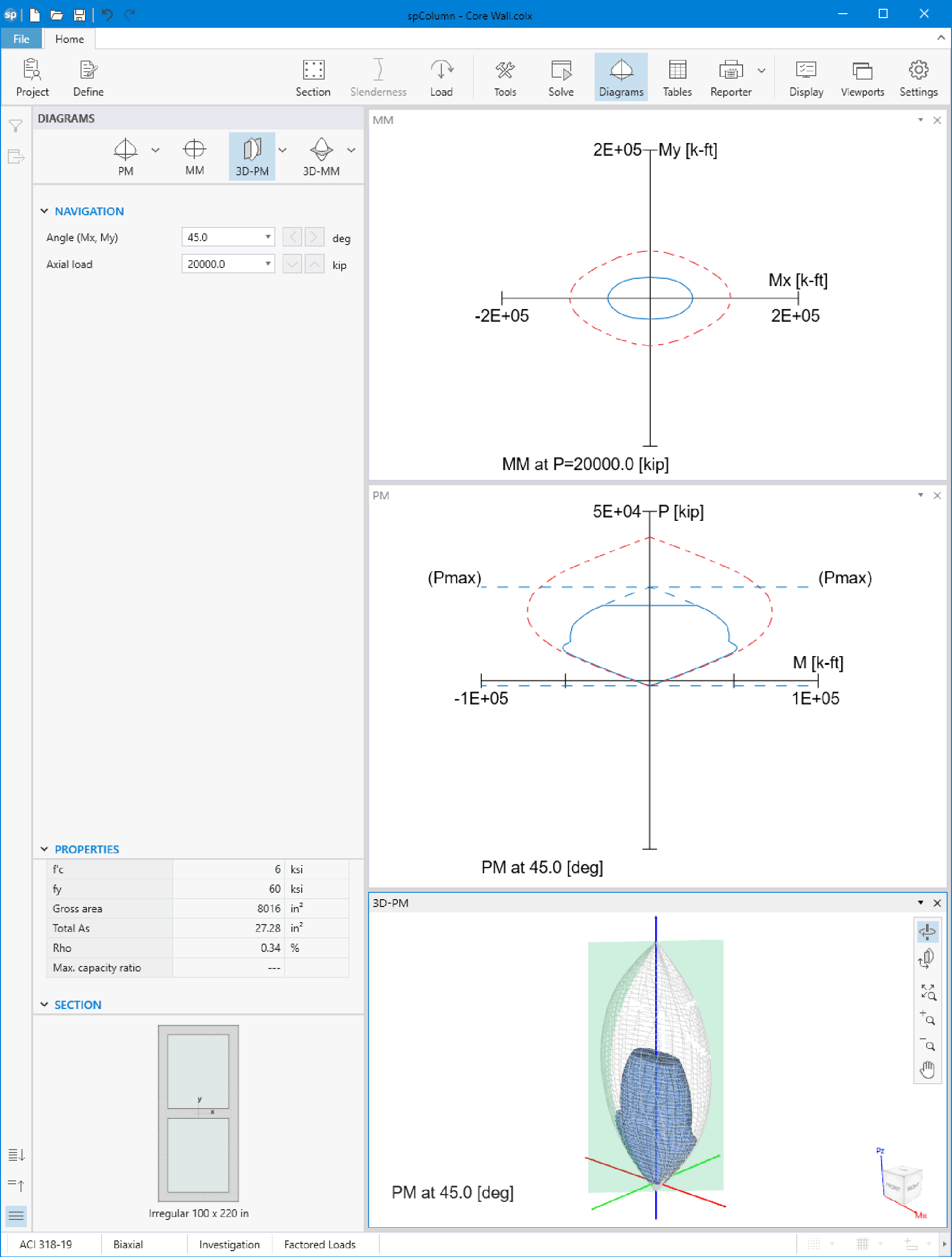

Figure 19 - Core Wall 3D Failure Surface with a Horizontal Plane Cut a P = 20,000 kip (spColumn)

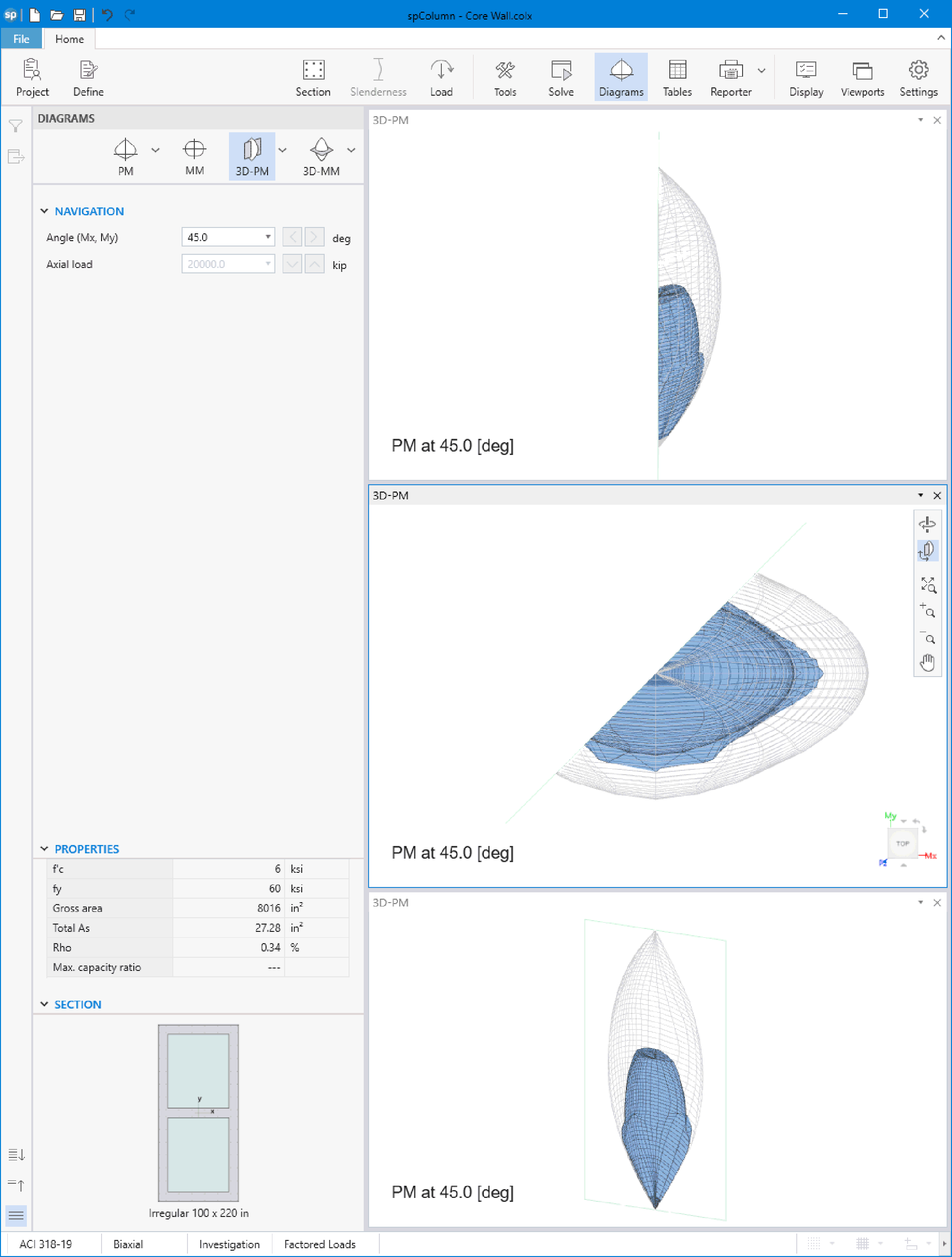

Figure 20 - Core Wall 3D Failure Surface with a Vertical Plane Cut a 45º (spColumn)
