Interaction Diagram - Tied Reinforced Concrete Column (CSA A23.3-19)

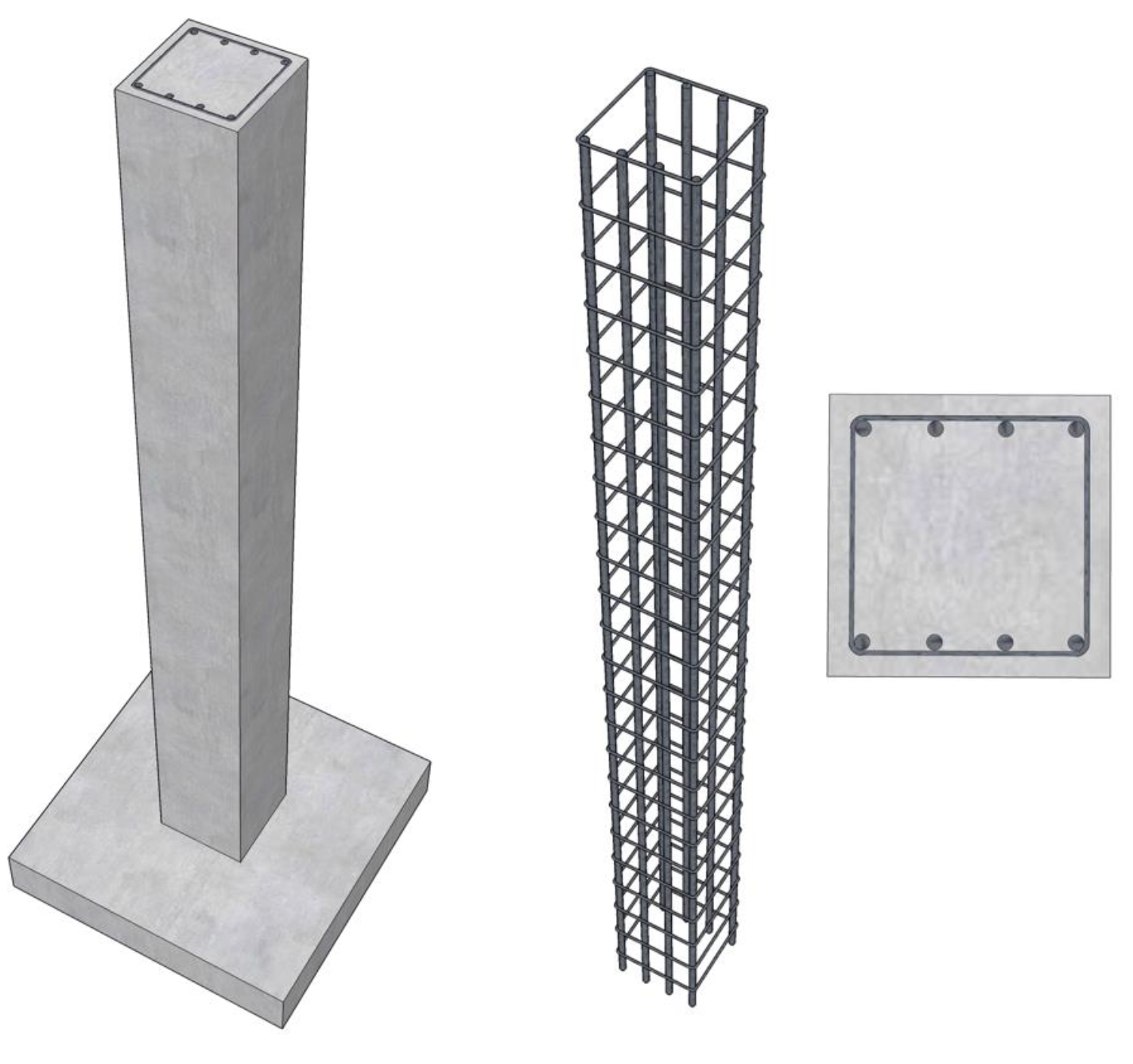

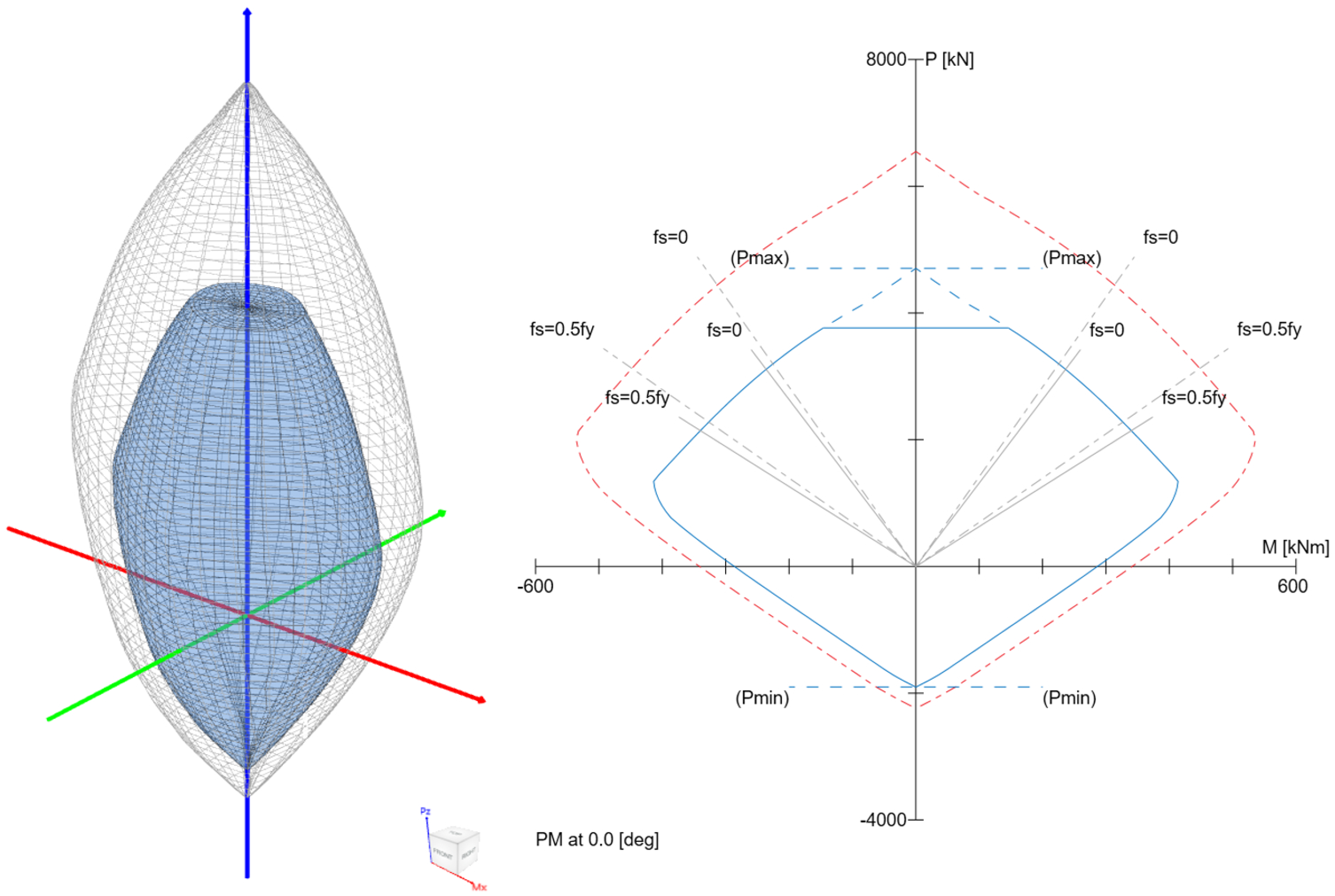

Develop an interaction diagram for the square tied concrete column shown in the figure below about the x-axis using CSA A23.3-19 provisions. Determine six control points on the interaction diagram and compare the calculated values with exact values from the complete interaction diagram generated by spColumn engineering software program from StructurePoint.

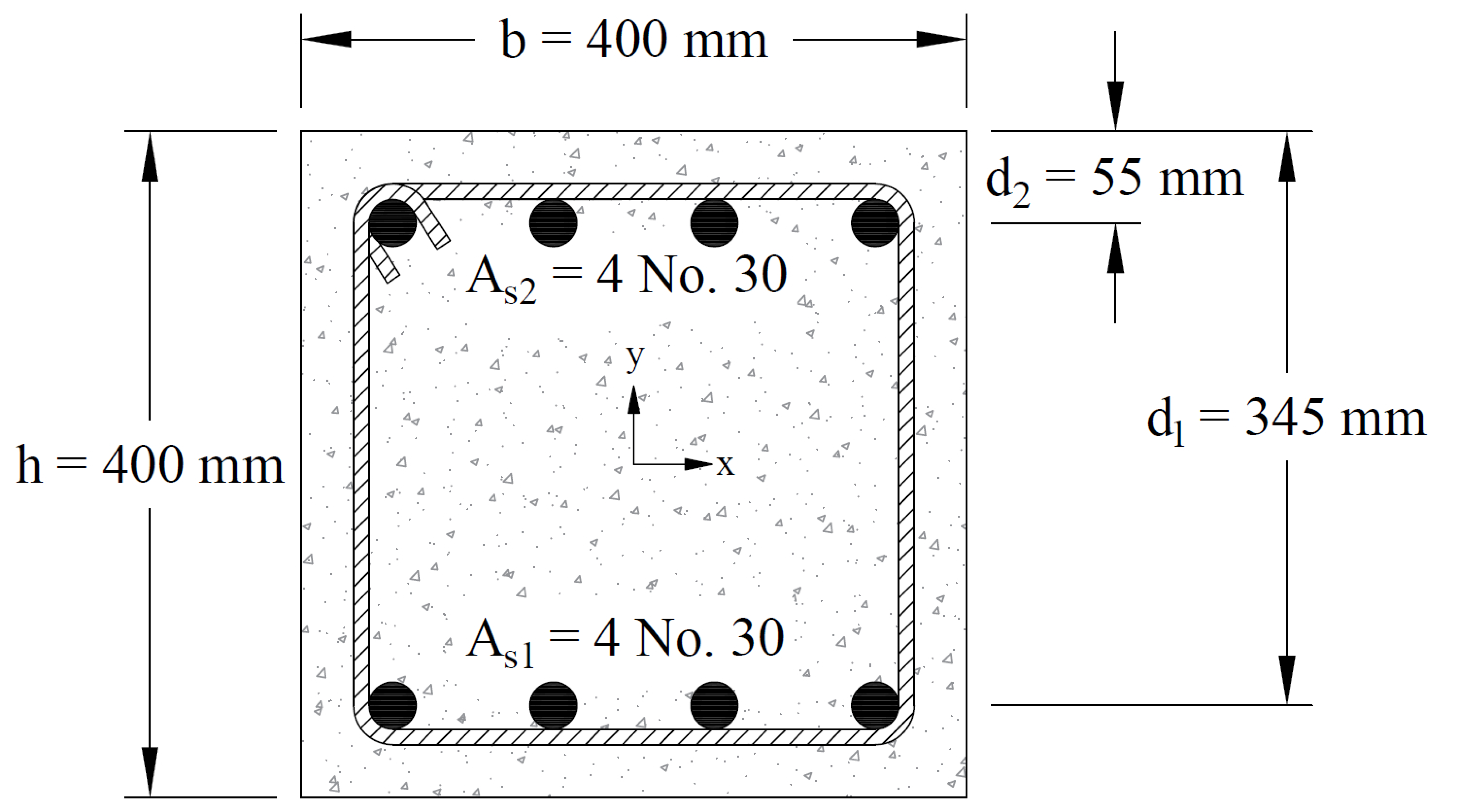

Figure 1 - Reinforced Concrete Column Cross-Section
