8. Column Interaction Diagram - spColumn Software

spColumn is a StructurePoint software program that performs the analysis and design of reinforced concrete sections subjected to axial force combined with uniaxial or biaxial bending. Using the provisions of the Strength Design Method and Unified Design Provisions, slenderness considerations are used for moment magnification due to second order effect (P-Delta) for sway and non-sway frames.

For this column section, investigation mode was used with no loads (the program will only report control points) and no slenderness considerations using ACI 318-19.

10 Interface

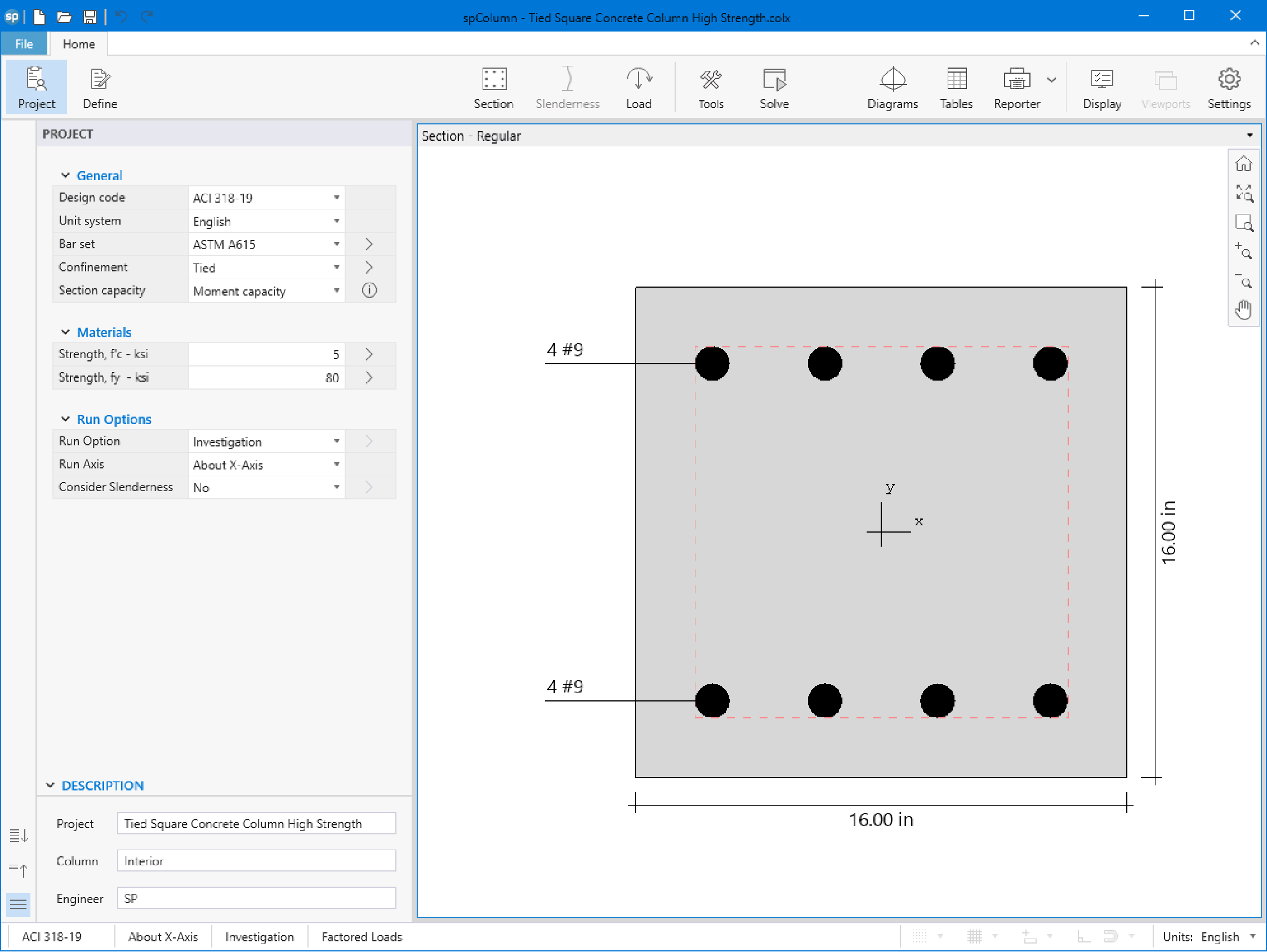

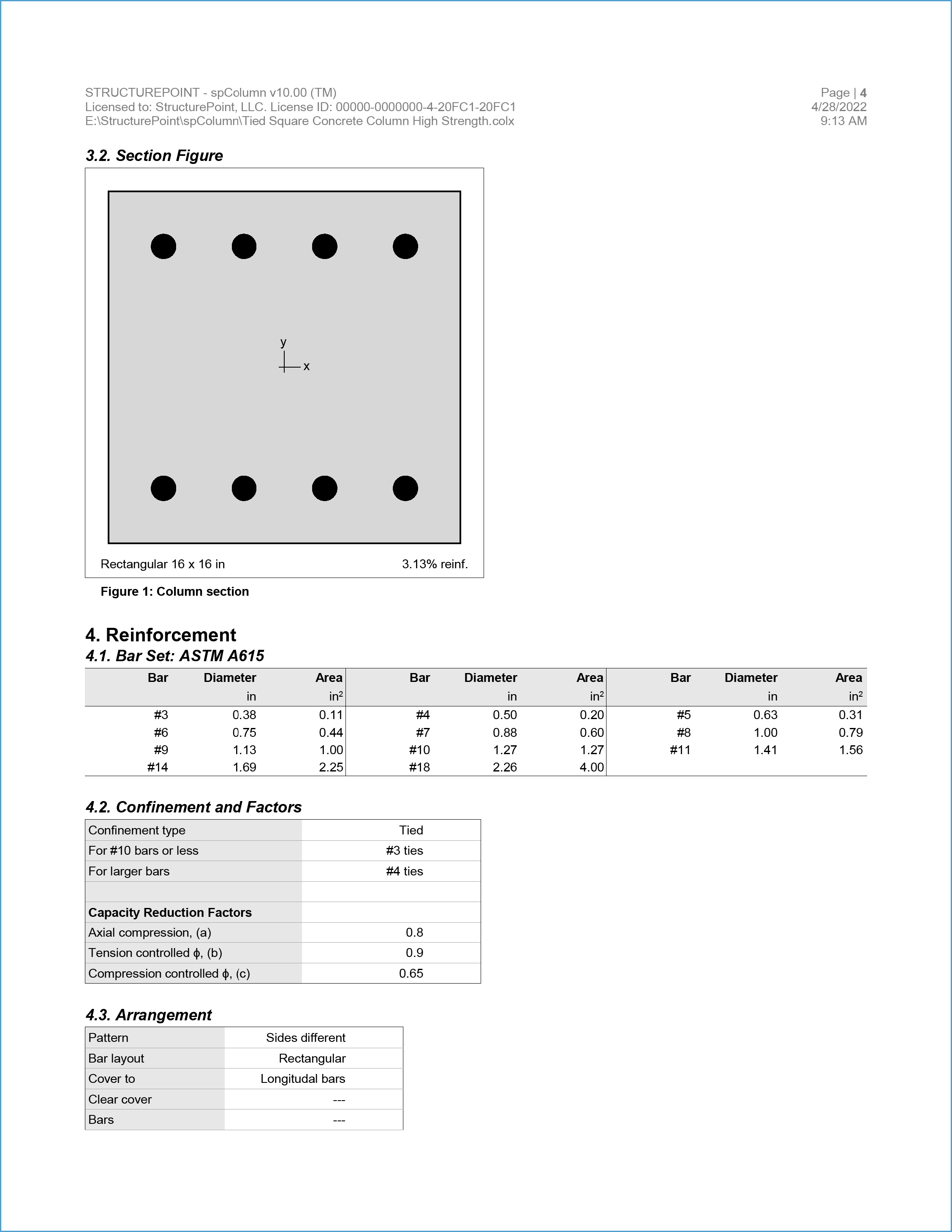

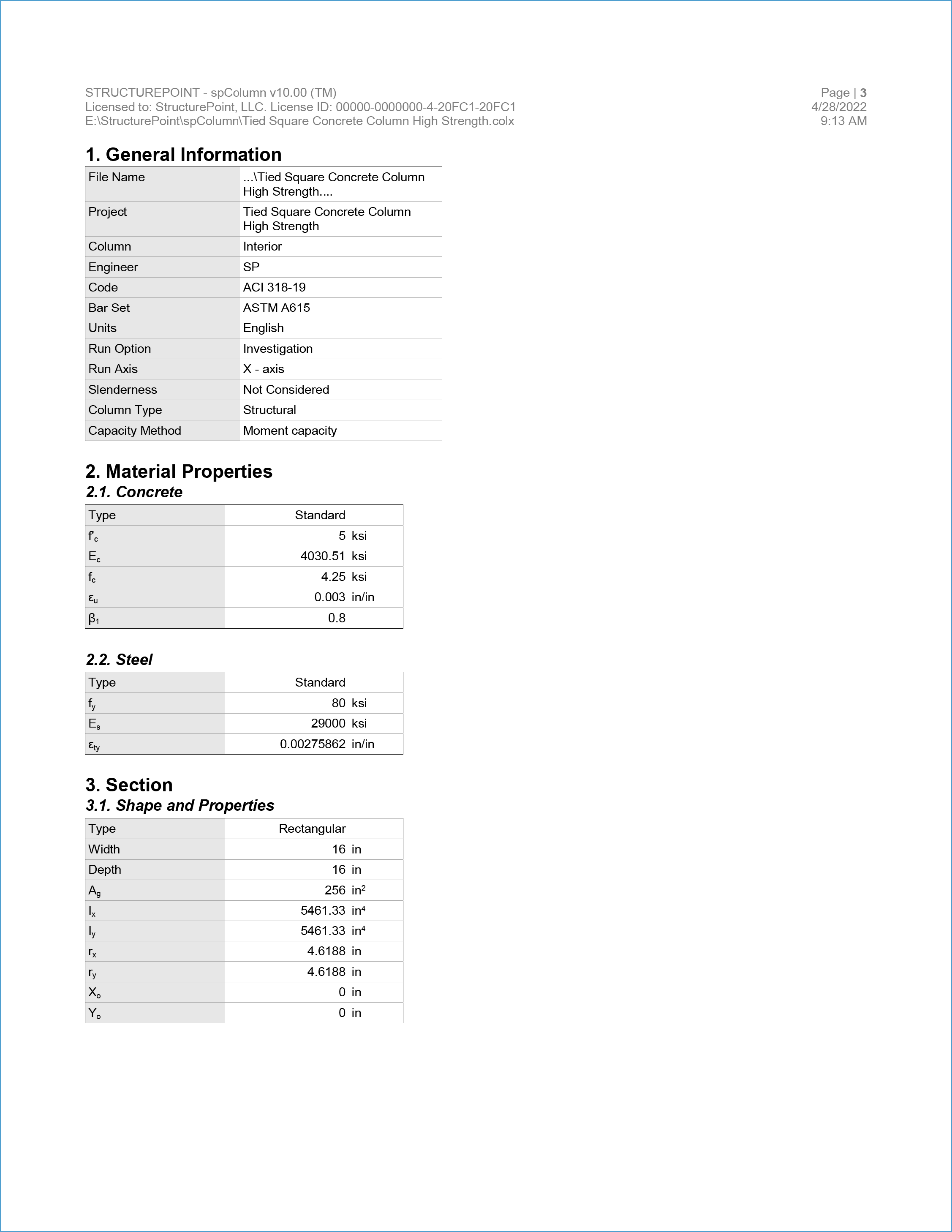

Figure 8 - spColumn Interface

11 Model Editor

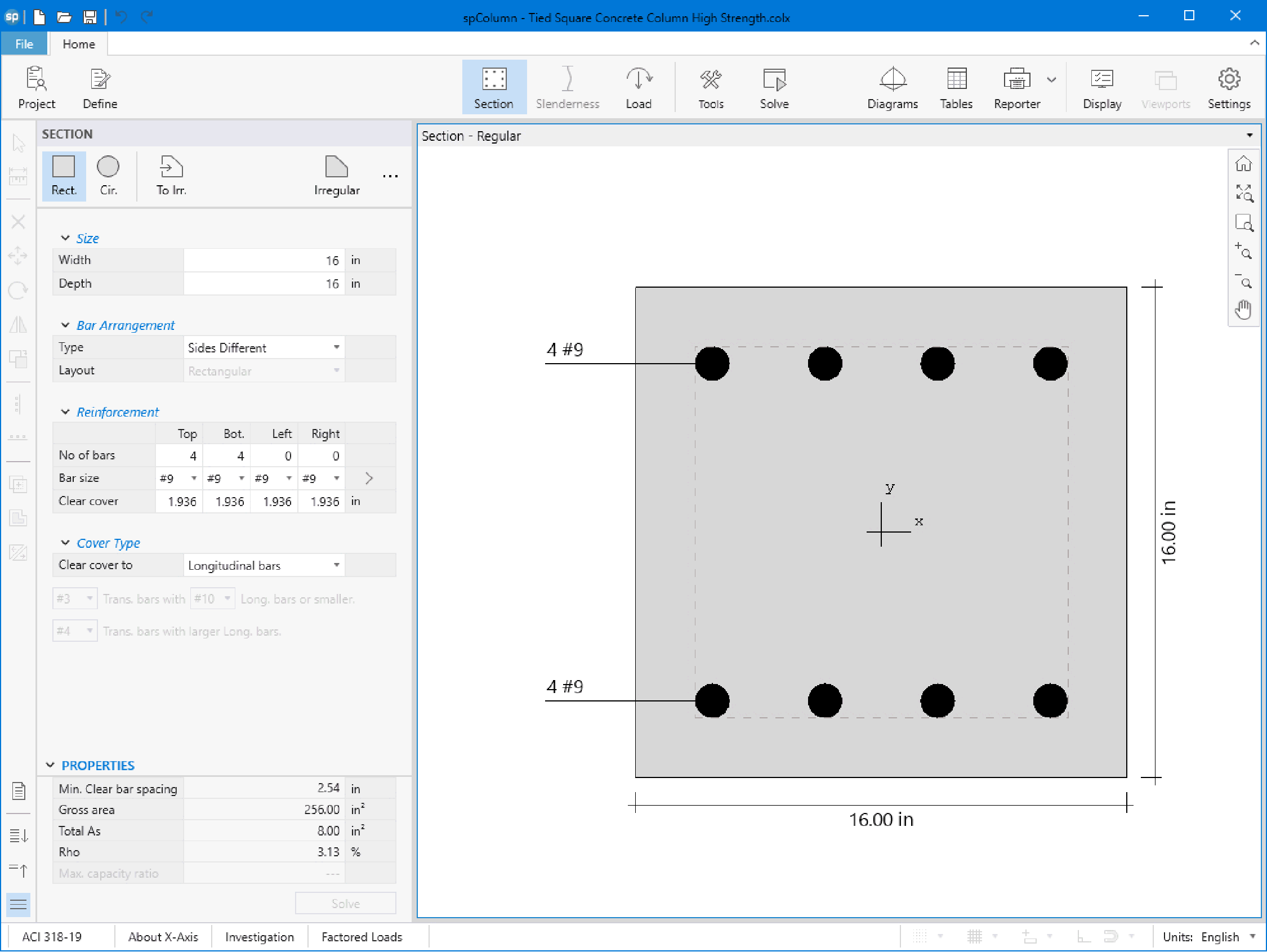

Figure 9 - spColumn Model Editor

12 Defining Loads

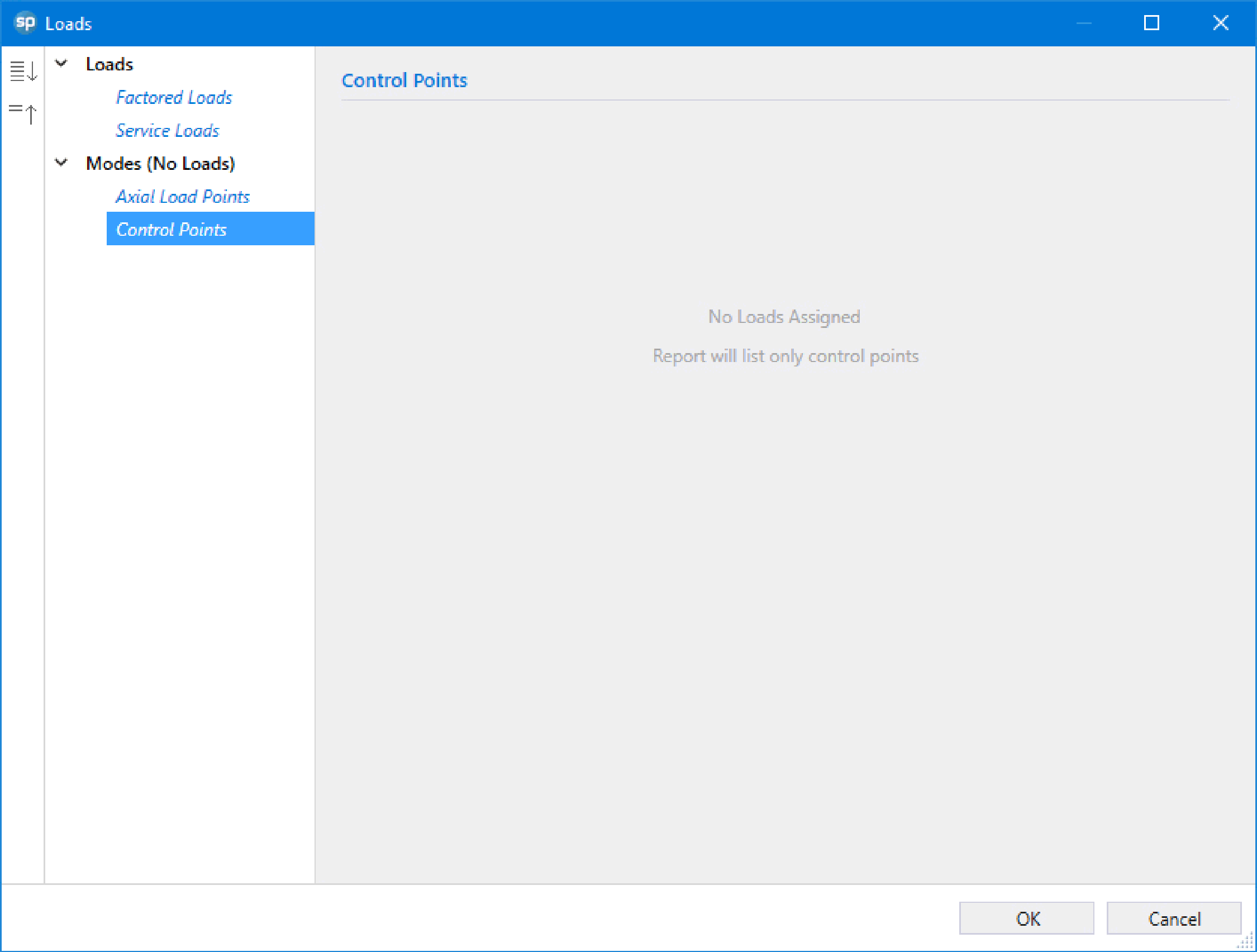

Figure 10 - Defining Loads / Modes (spColumn)

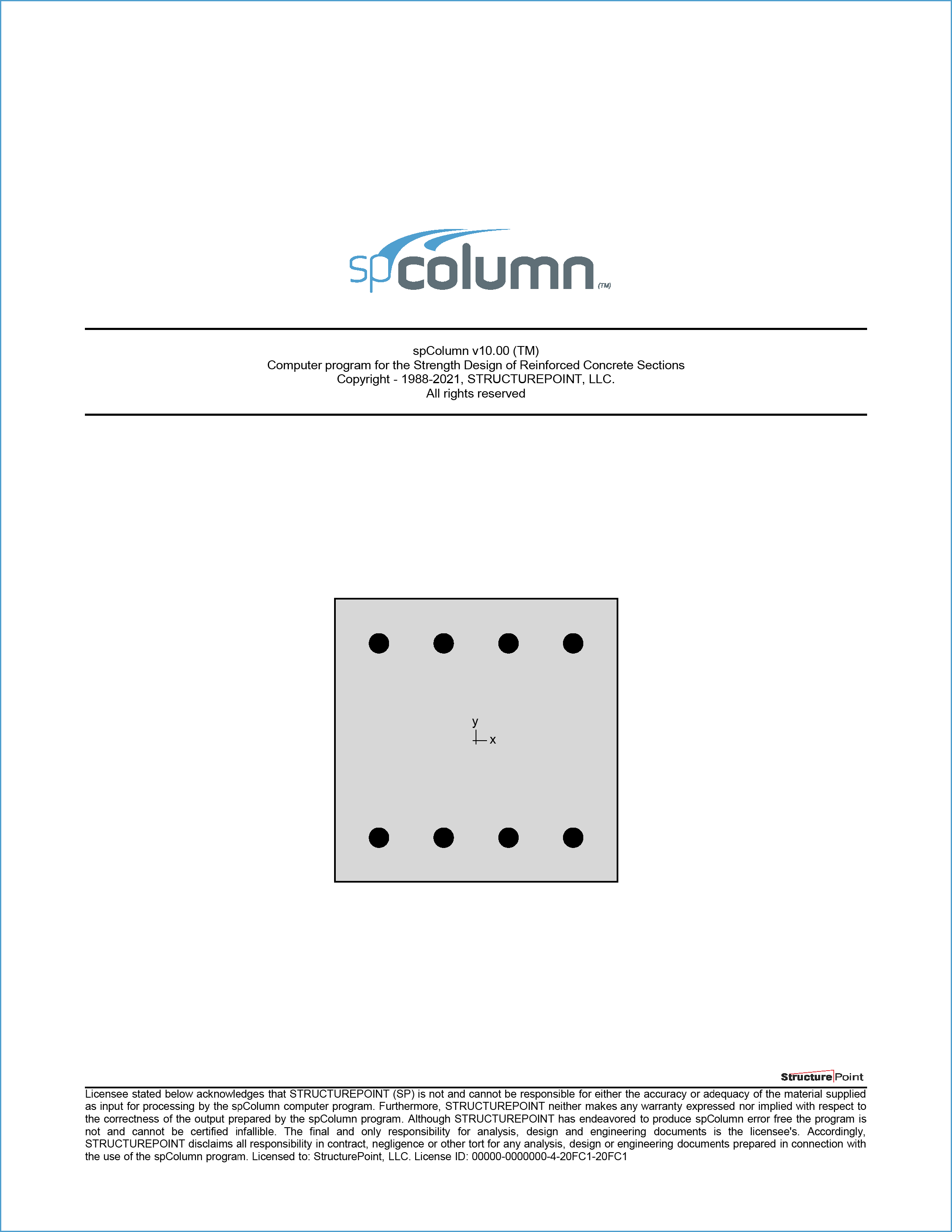

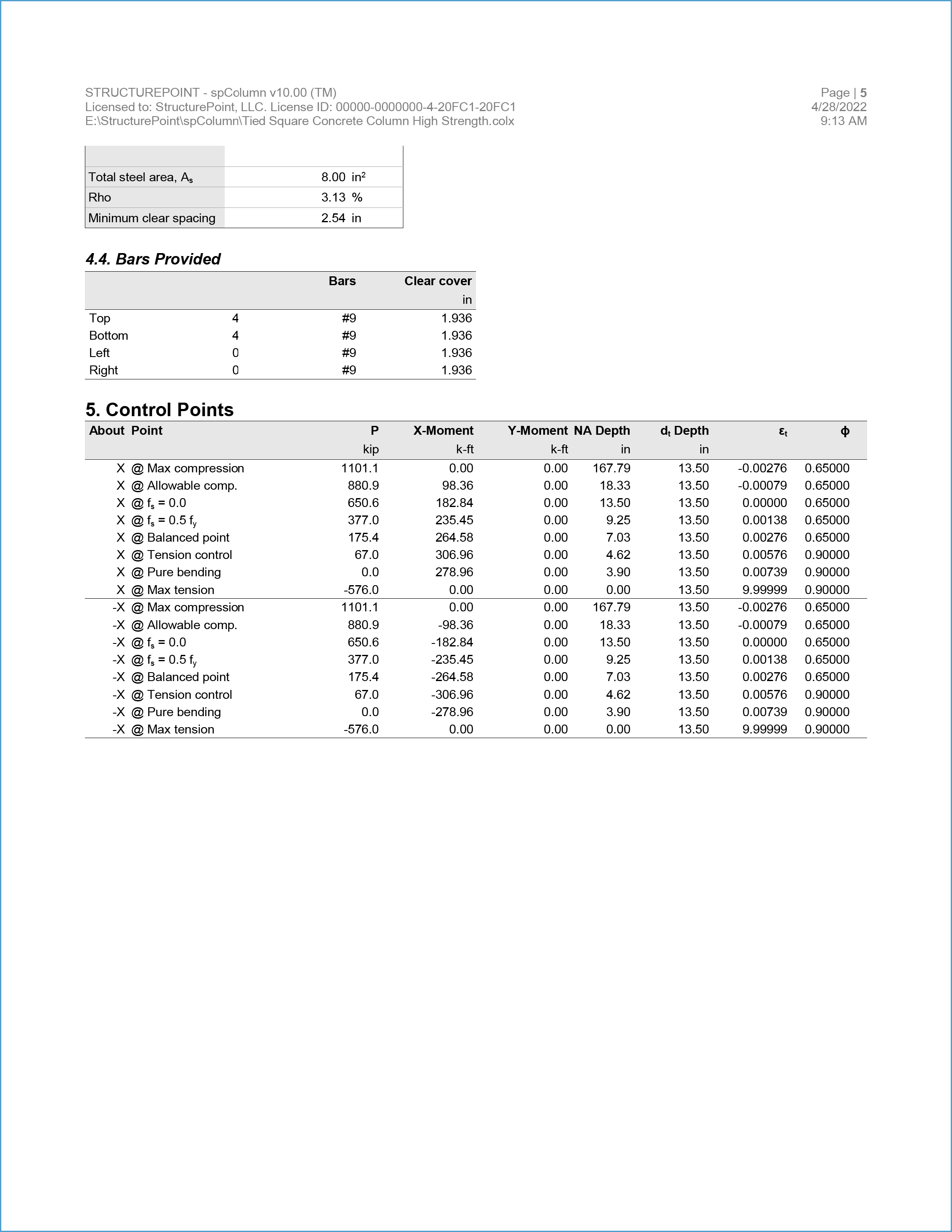

13 ID

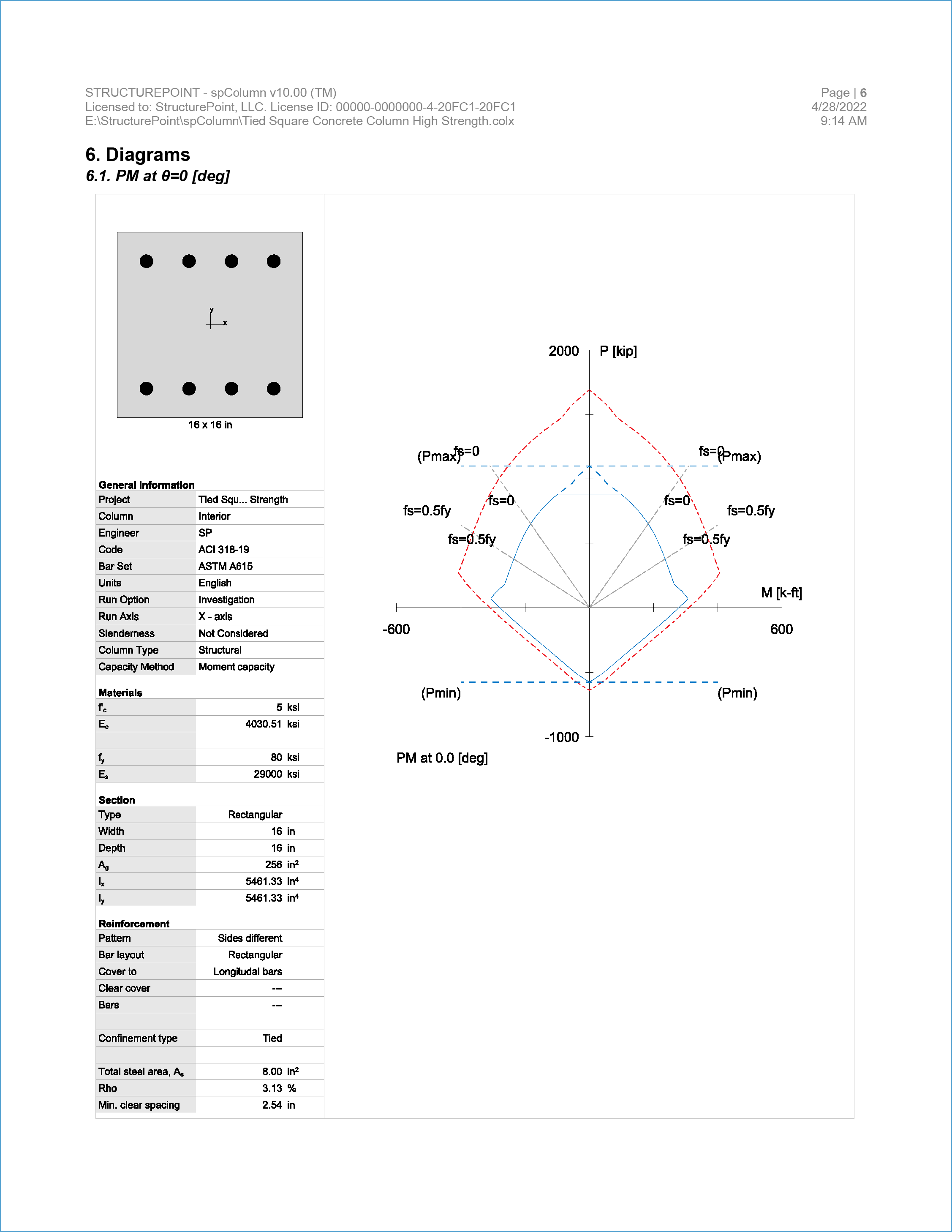

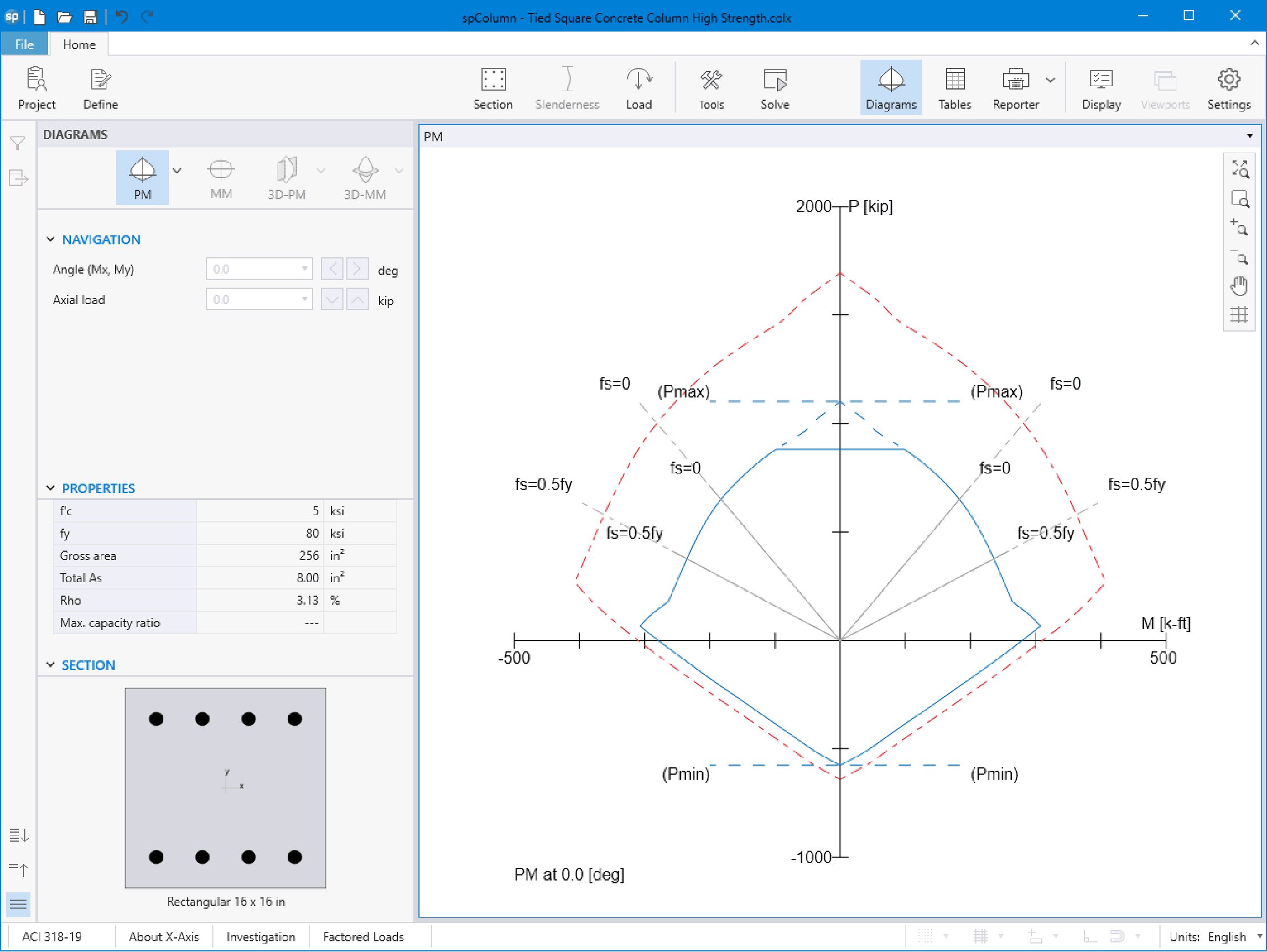

Figure 11 - Column P-M Interaction Diagram about the X-Axis (spColumn)
