Problem Statement

Reinforced Concrete Bearing Wall Design (CSA A23.3-14)

01 3D Model

A structural reinforced concrete bearing wall in a single-story building provides gravity load resistance for the following applied loads:

Roof uniform dead load

= 120 kN/m

Roof uniform live load

= 150 kN/m

The assumed bearing wall section is investigated after analysis to verify suitability for the applied loads then compared with numerical analysis results obtained from spWall engineering software program from StructurePoint.

02 Geometry

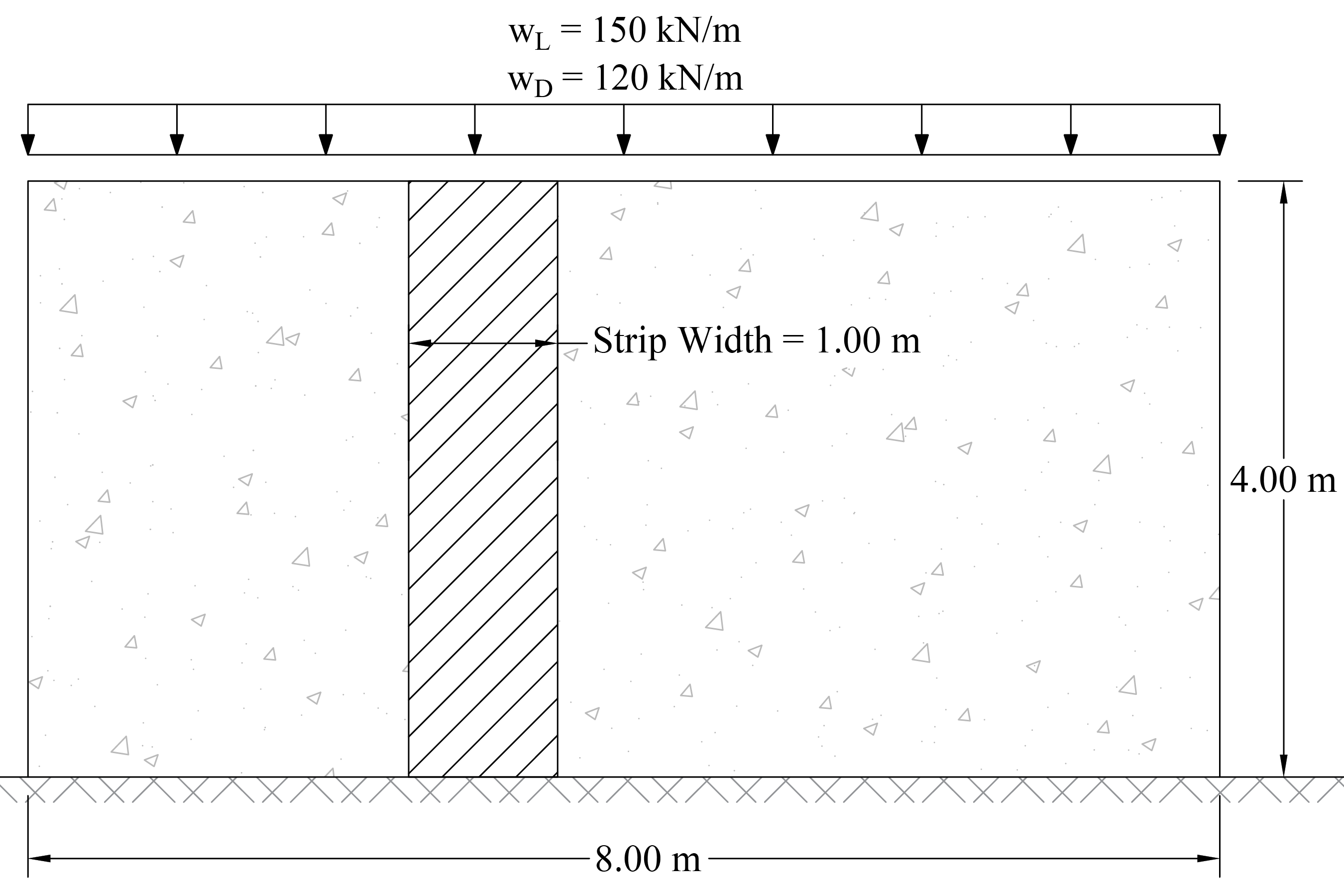

Figure 1 - Reinforced Concrete Bearing Wall Geometry
