7. Column Interaction Diagram - spColumn Software

spColumn is a StructurePoint software program that performs the analysis and design of reinforced concrete sections subjected to axial force combined with uniaxial or biaxial bending. Using the provisions of the Strength Design Method and Unified Design Provisions, slenderness considerations are used for moment magnification due to second order effect (P-Delta) for sway and non-sway frames.

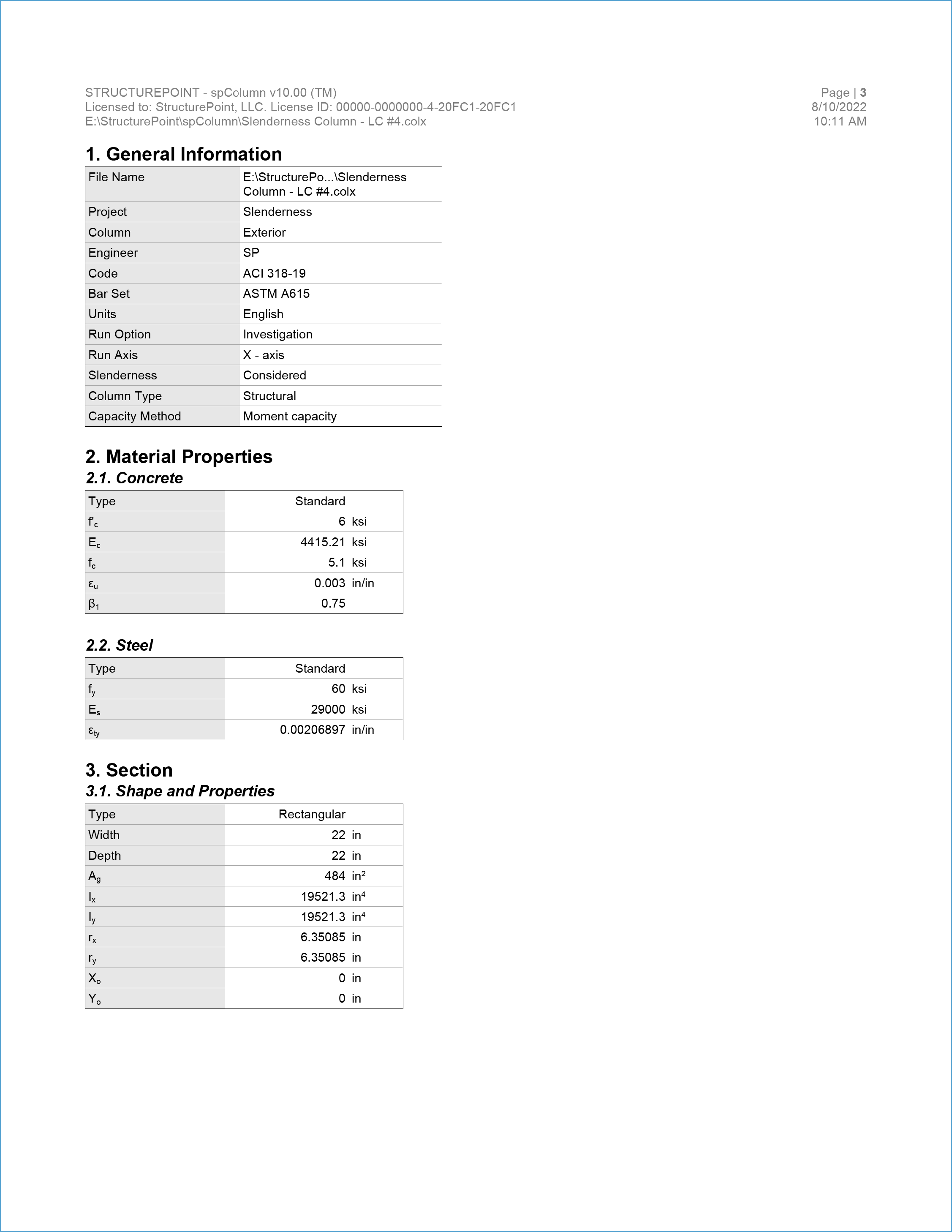

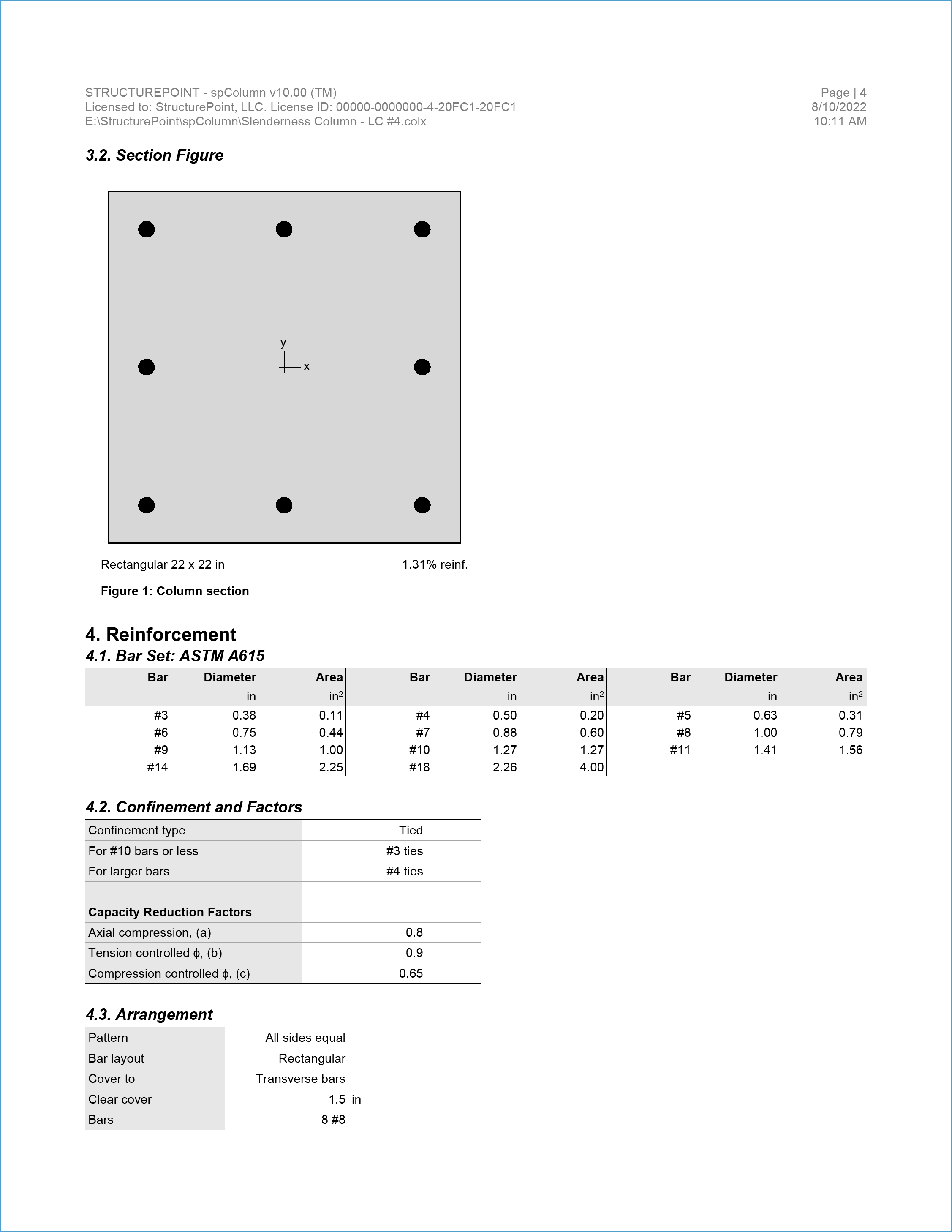

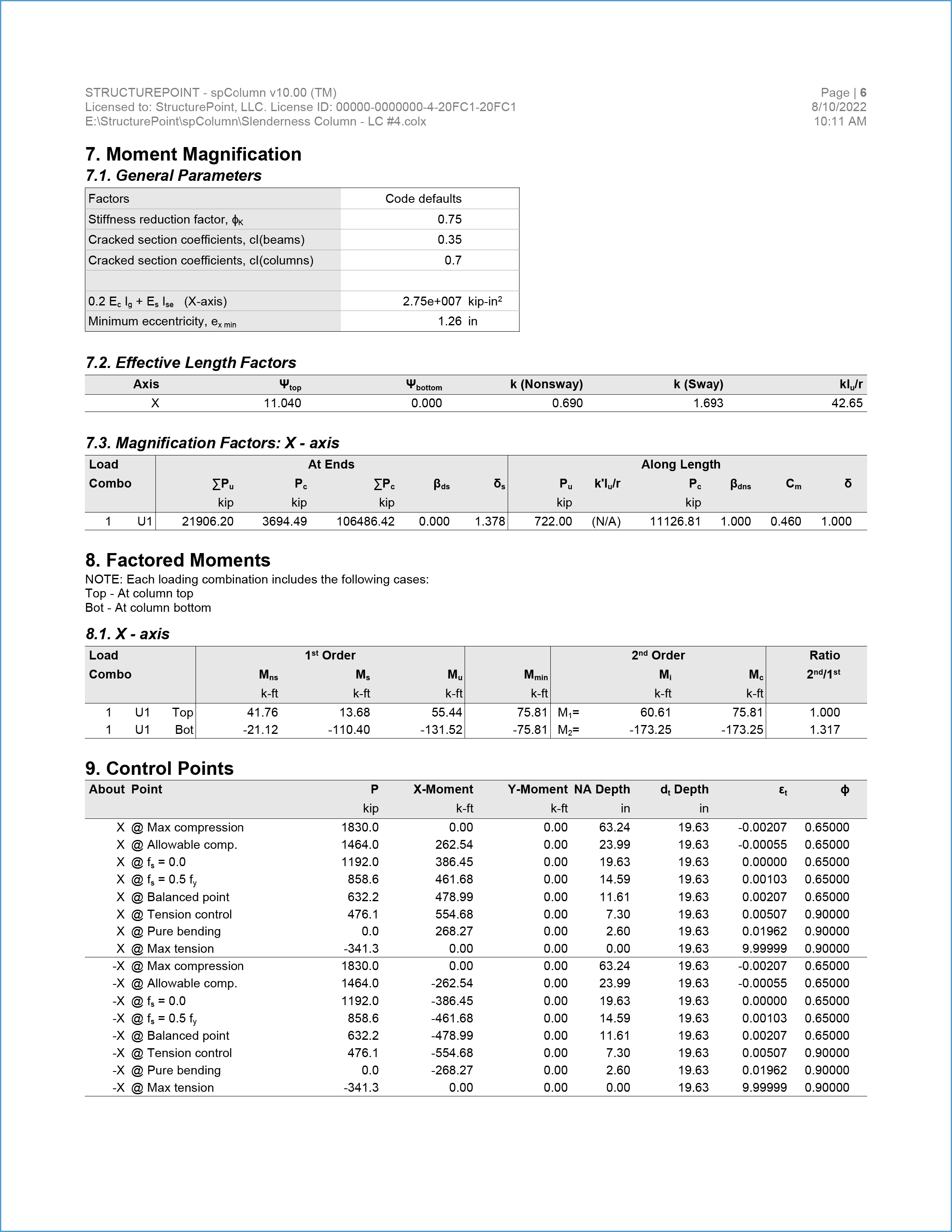

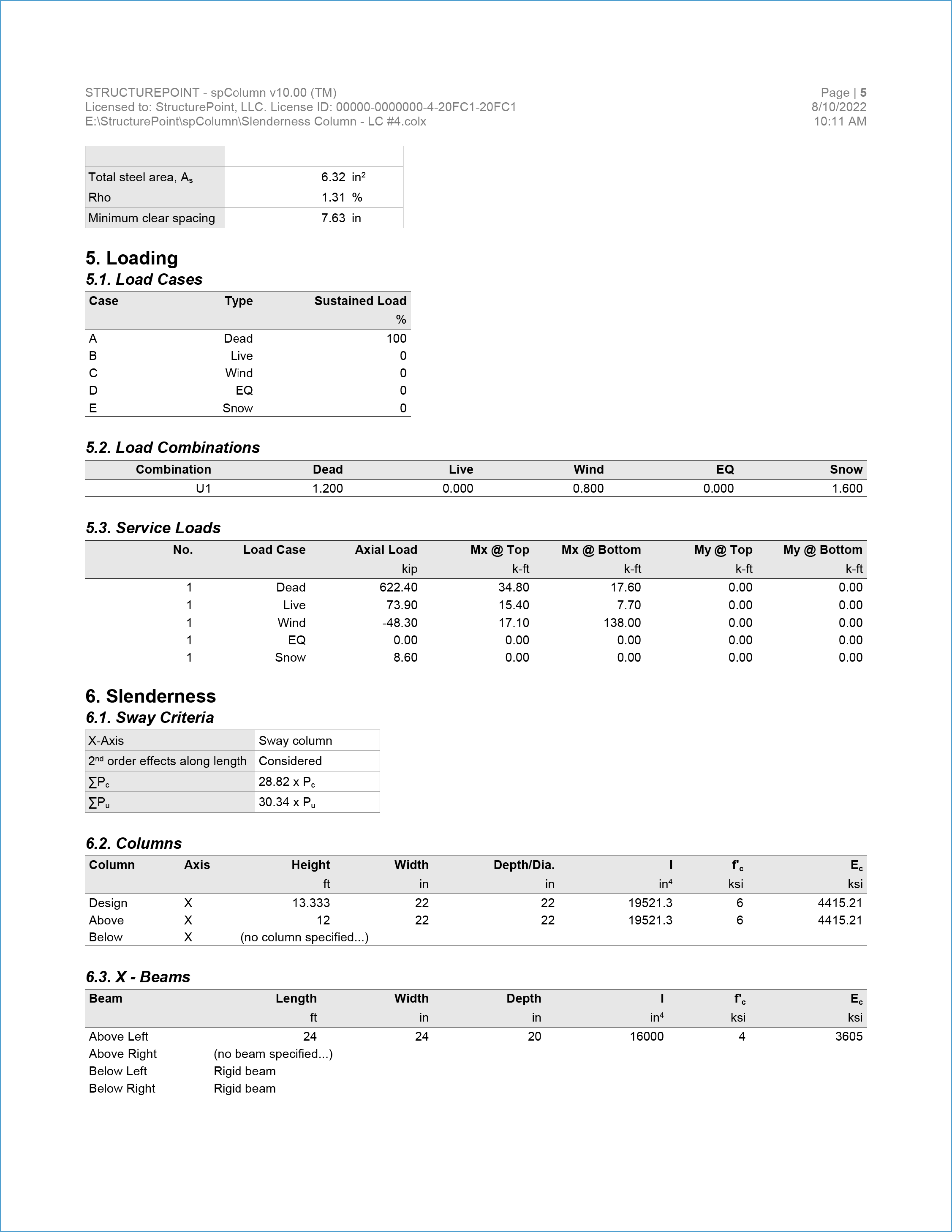

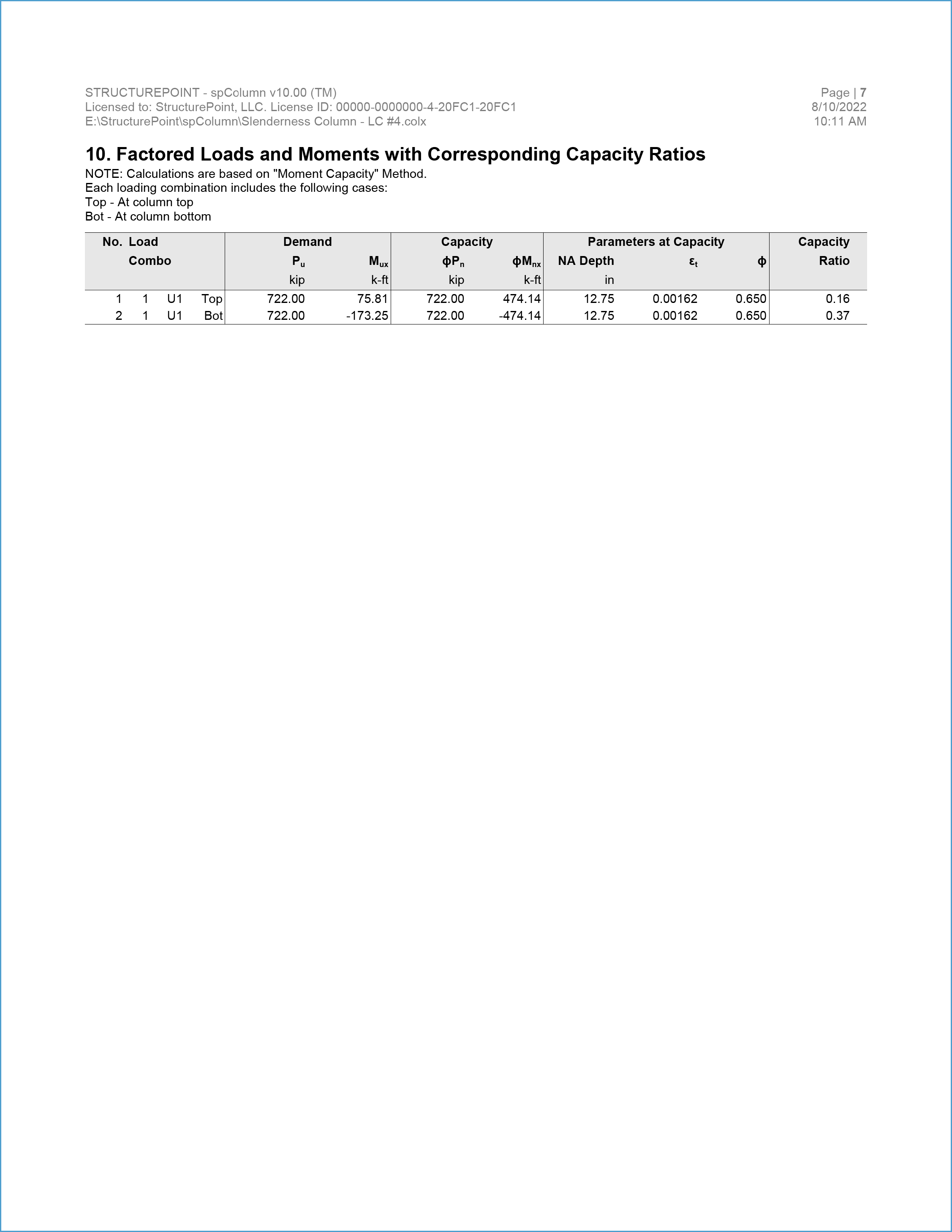

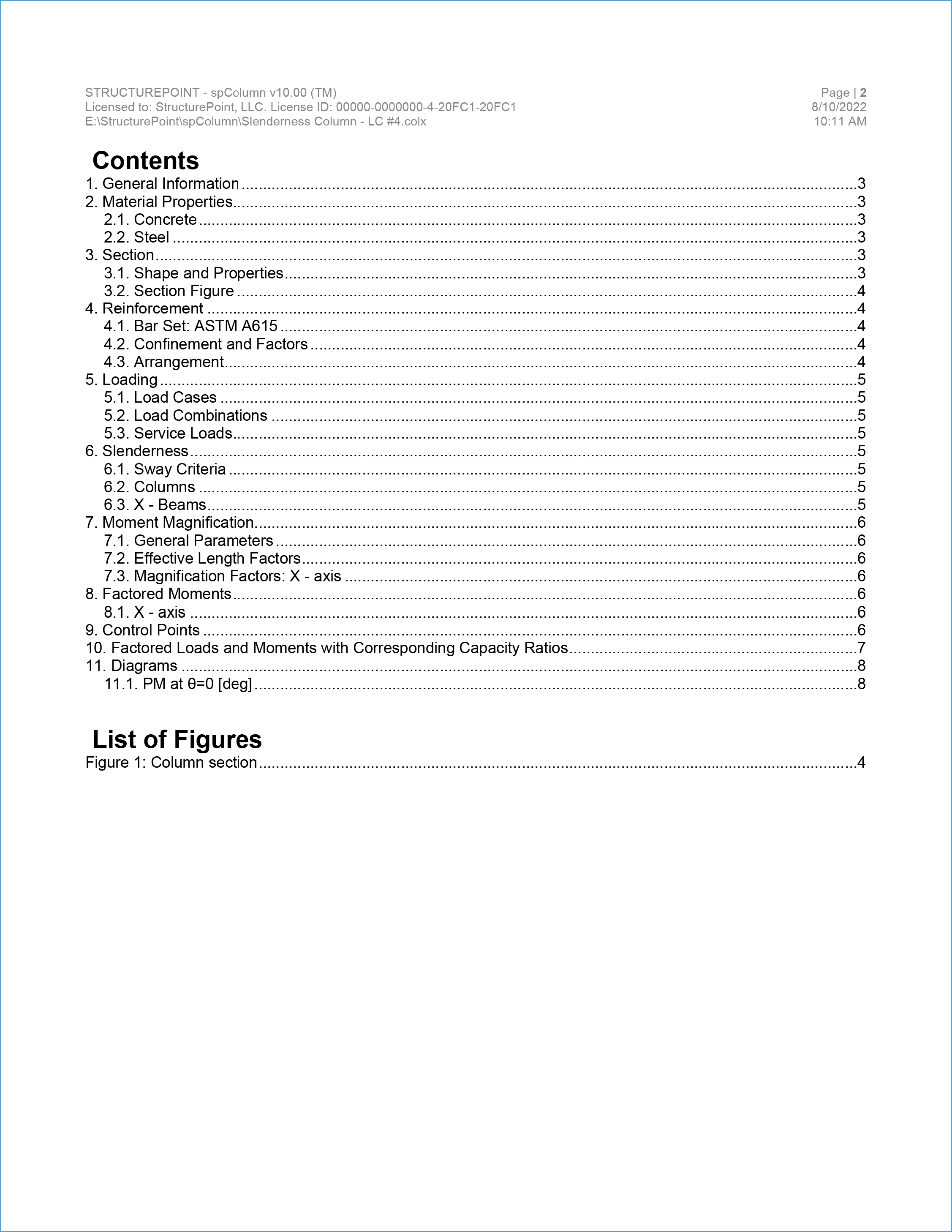

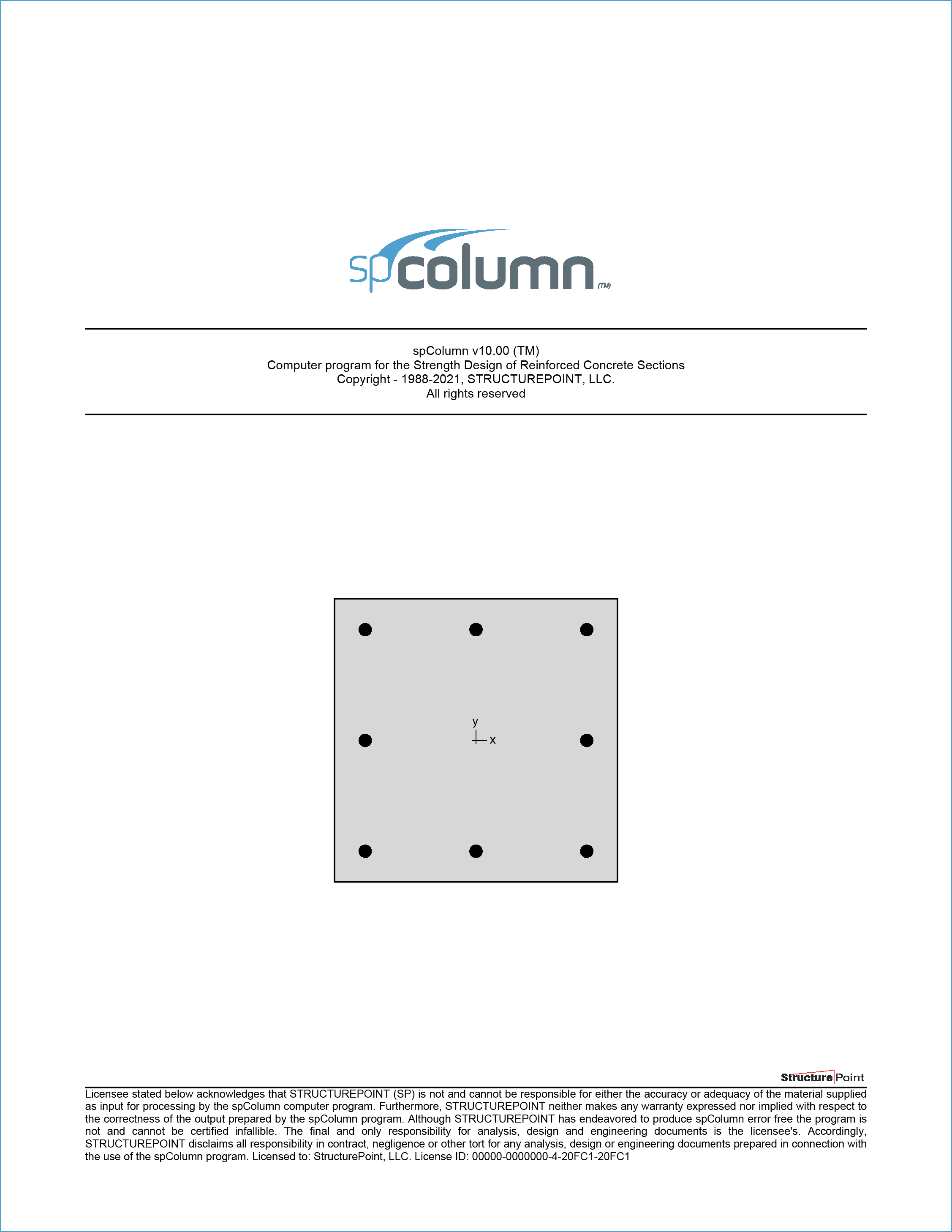

For this column section, investigation mode is used, service loads are defined, and slenderness effects are considered using ACI 318-19 provisions. The model input parameters, results, and report (for load combination #4) are shown below.

11 Interface

Figure 8 - spColumn Interface

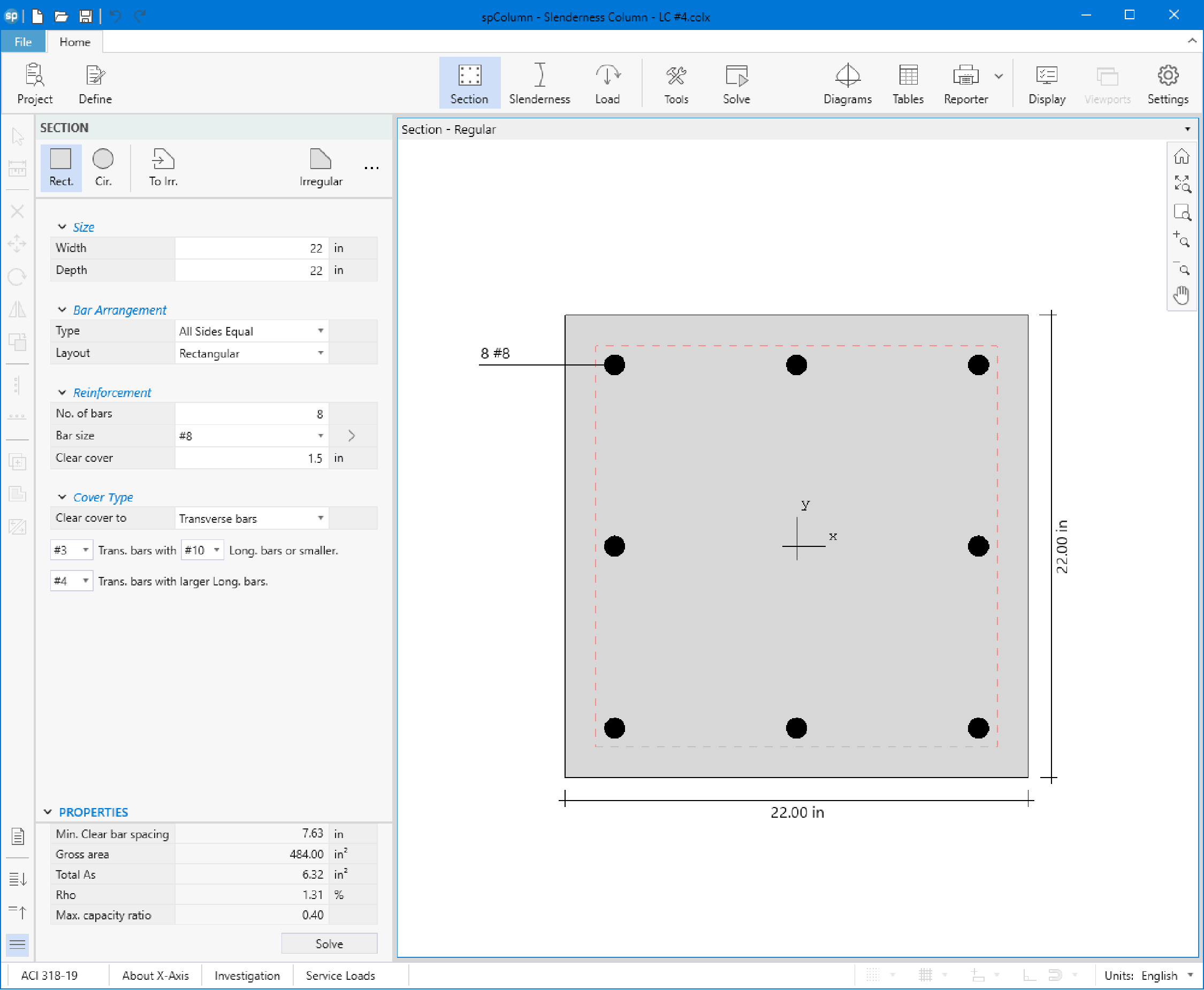

12 Model Editor

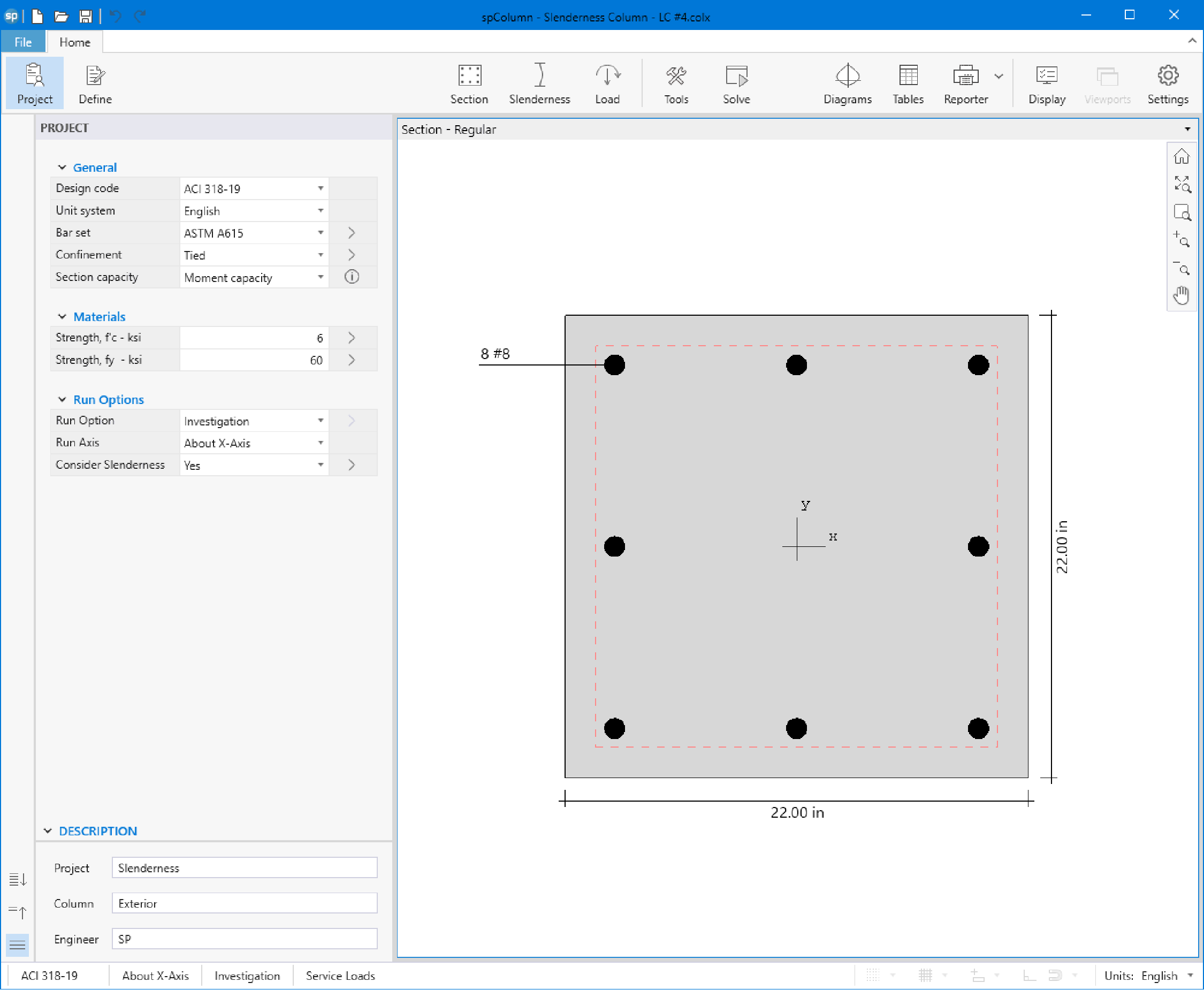

Figure 9 - spColumn Model Editor

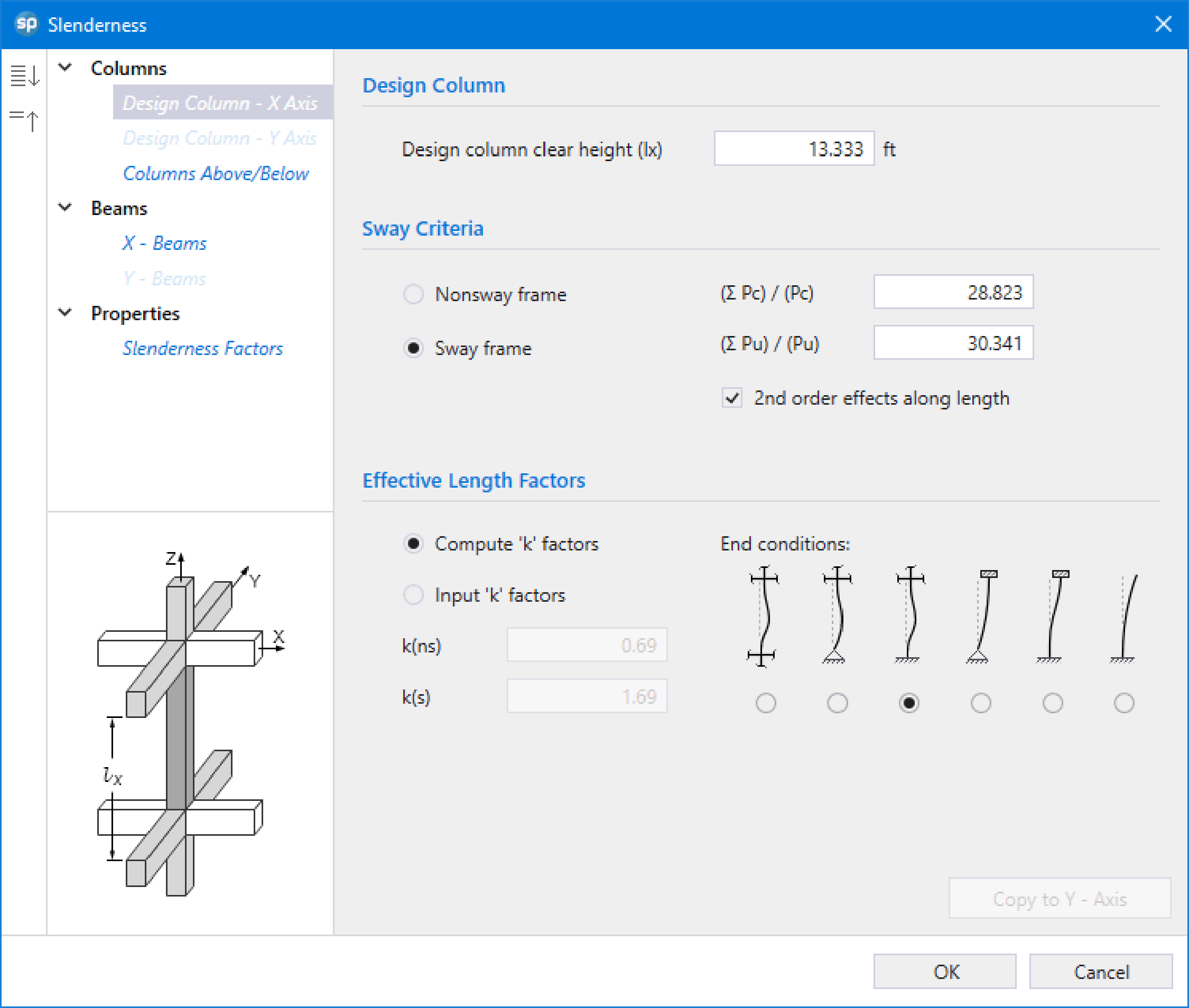

14 Slenderness

Figure 10 - Defining Slenderness - Load Combination #4 (spColumn)

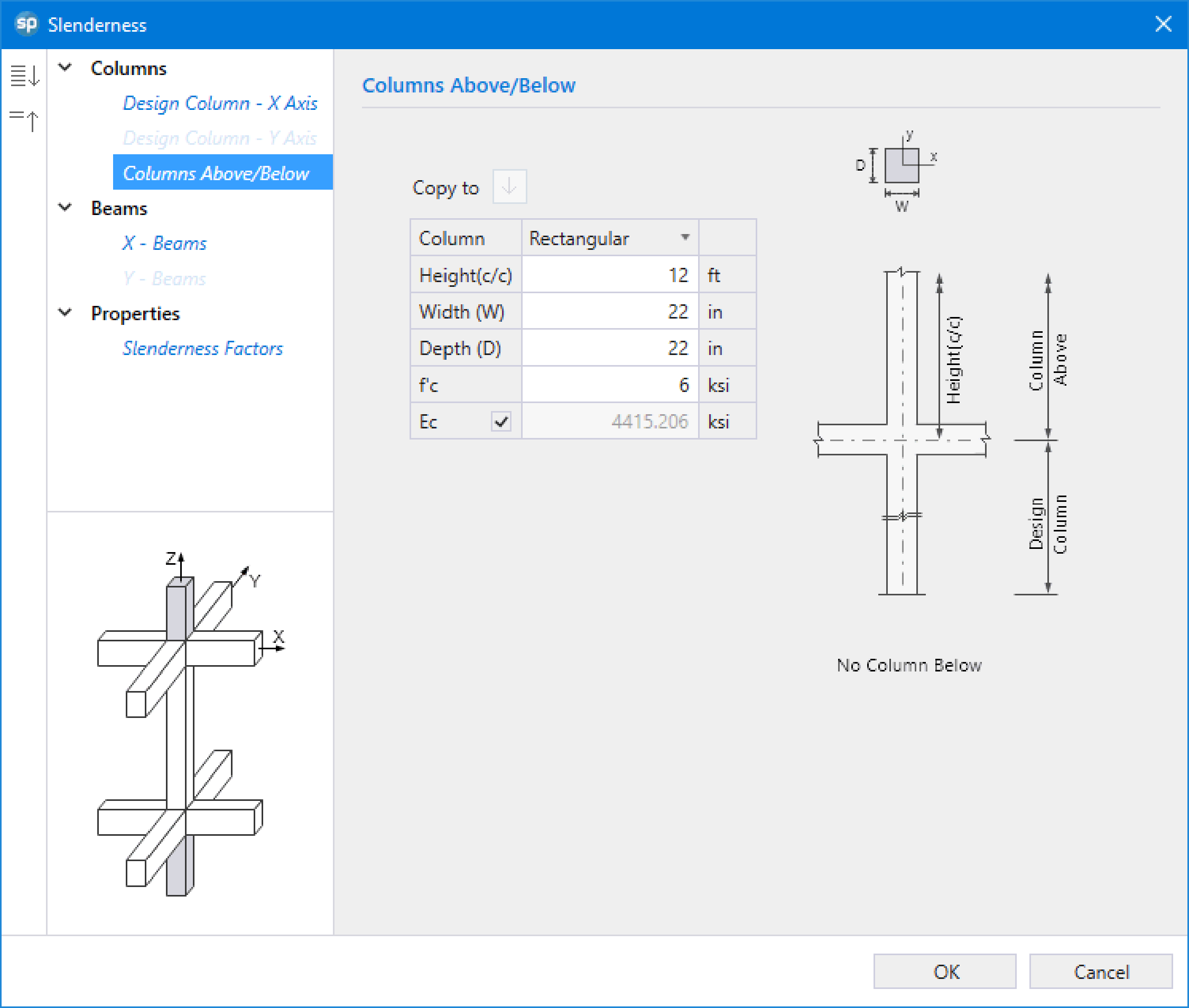

16 Columns Above Below

Figure 11 - Defining Columns Above / Below (spColumn)

17 Beams in X direction

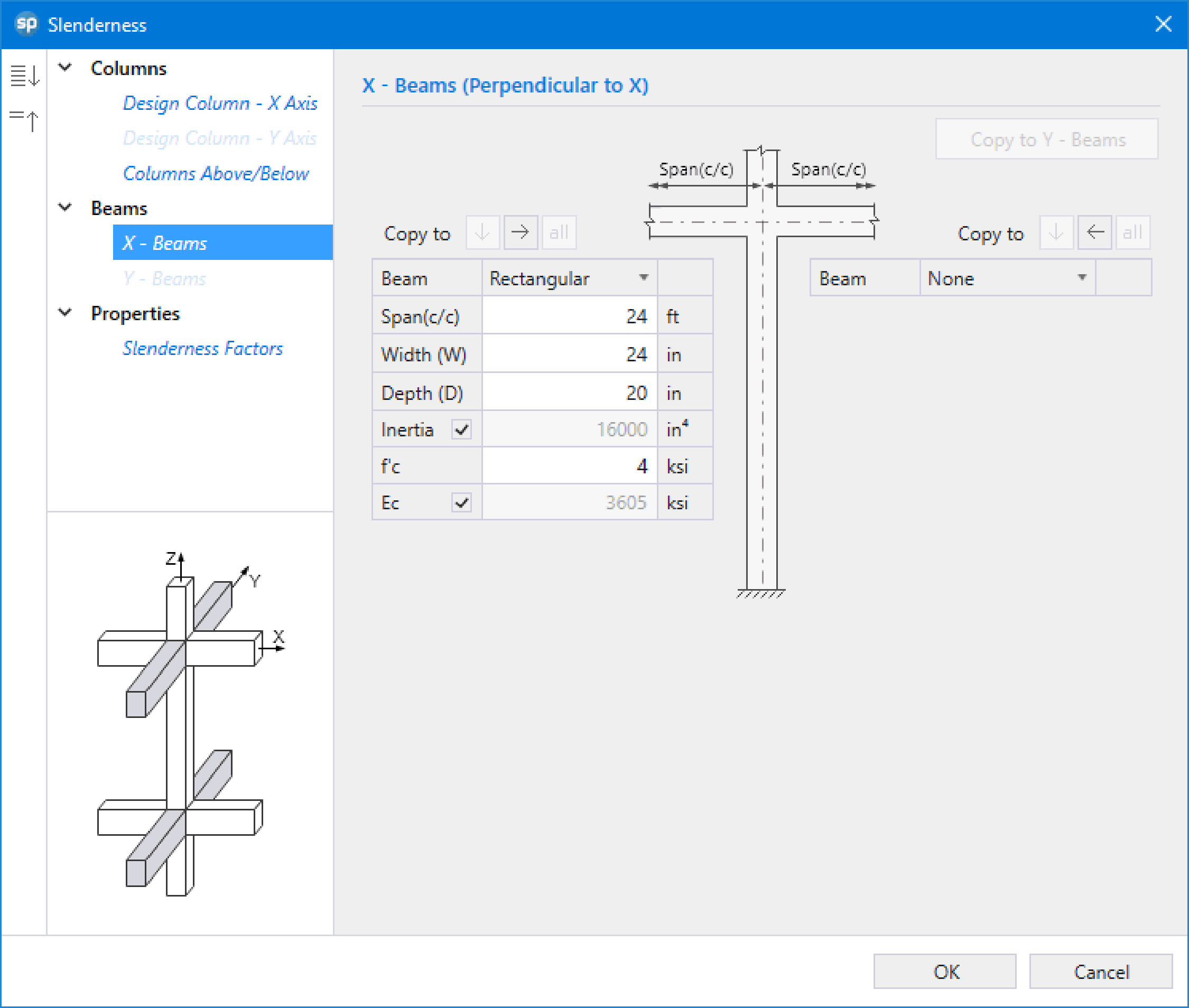

Figure 12 - Defining Beams in X-Direction (spColumn)

13 Defining Loads

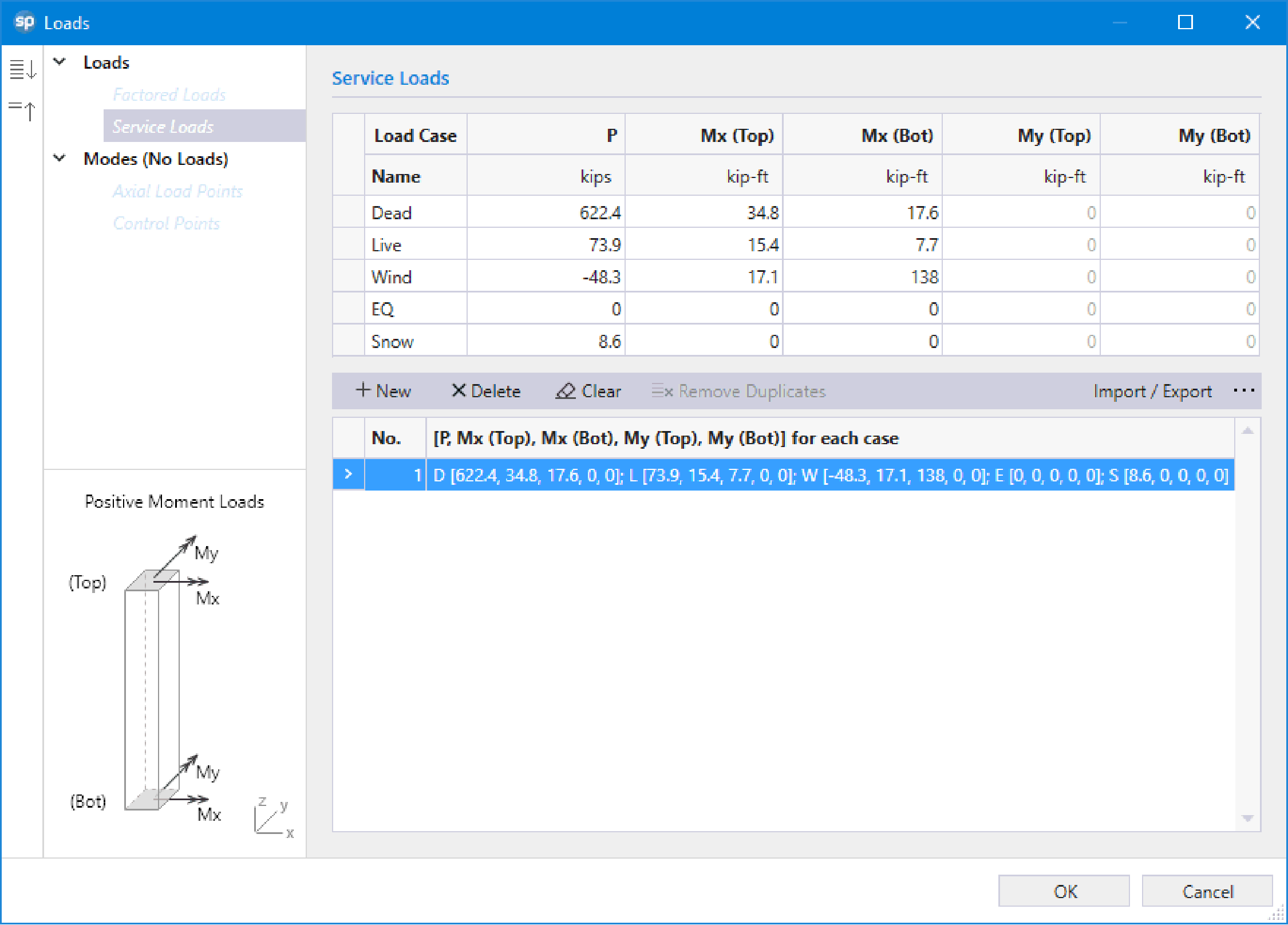

Figure 13 - Defining Loads / Modes (spColumn)

13.1 Defining Load Combination

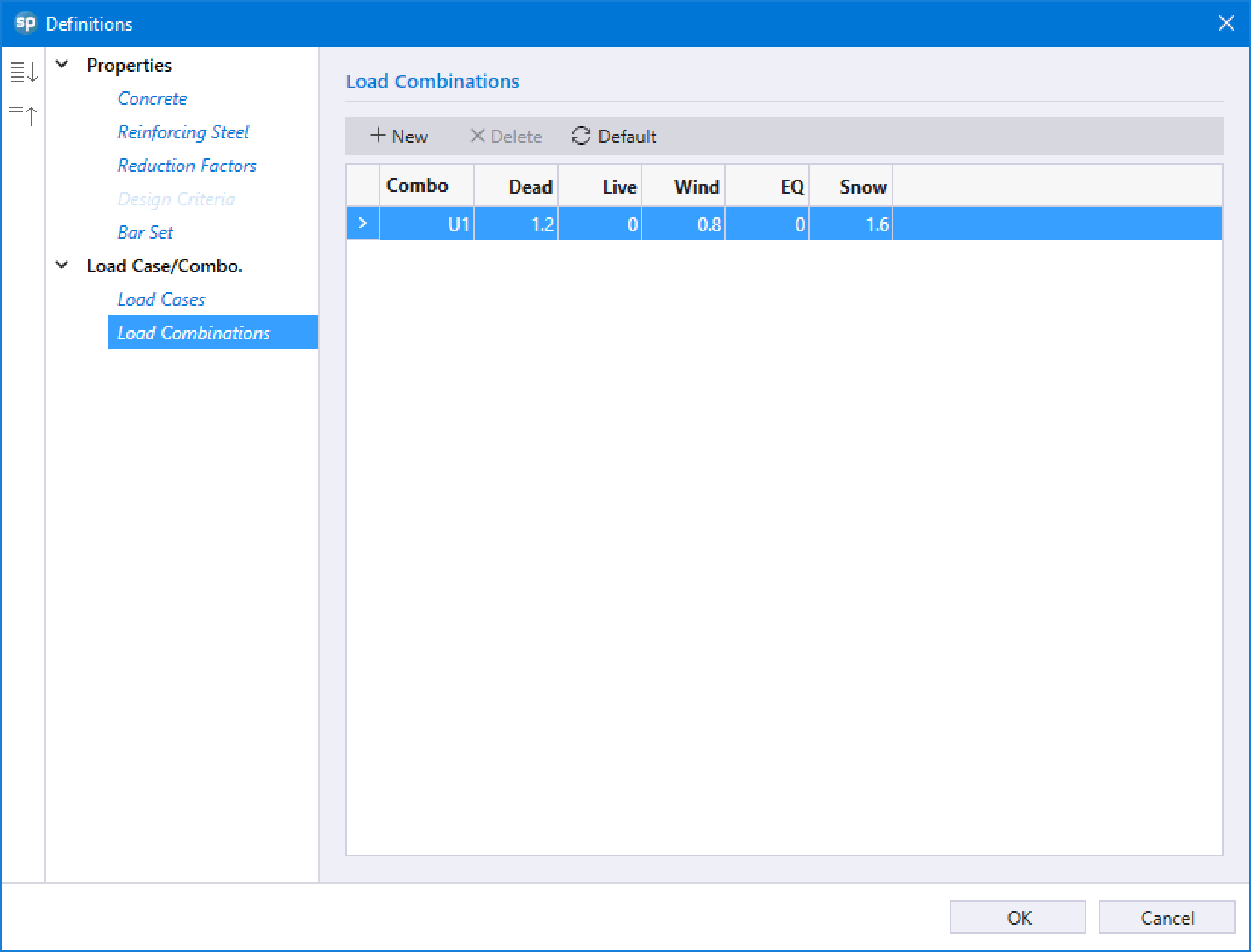

Figure 14 - Defining Load Combination #4 (spColumn)

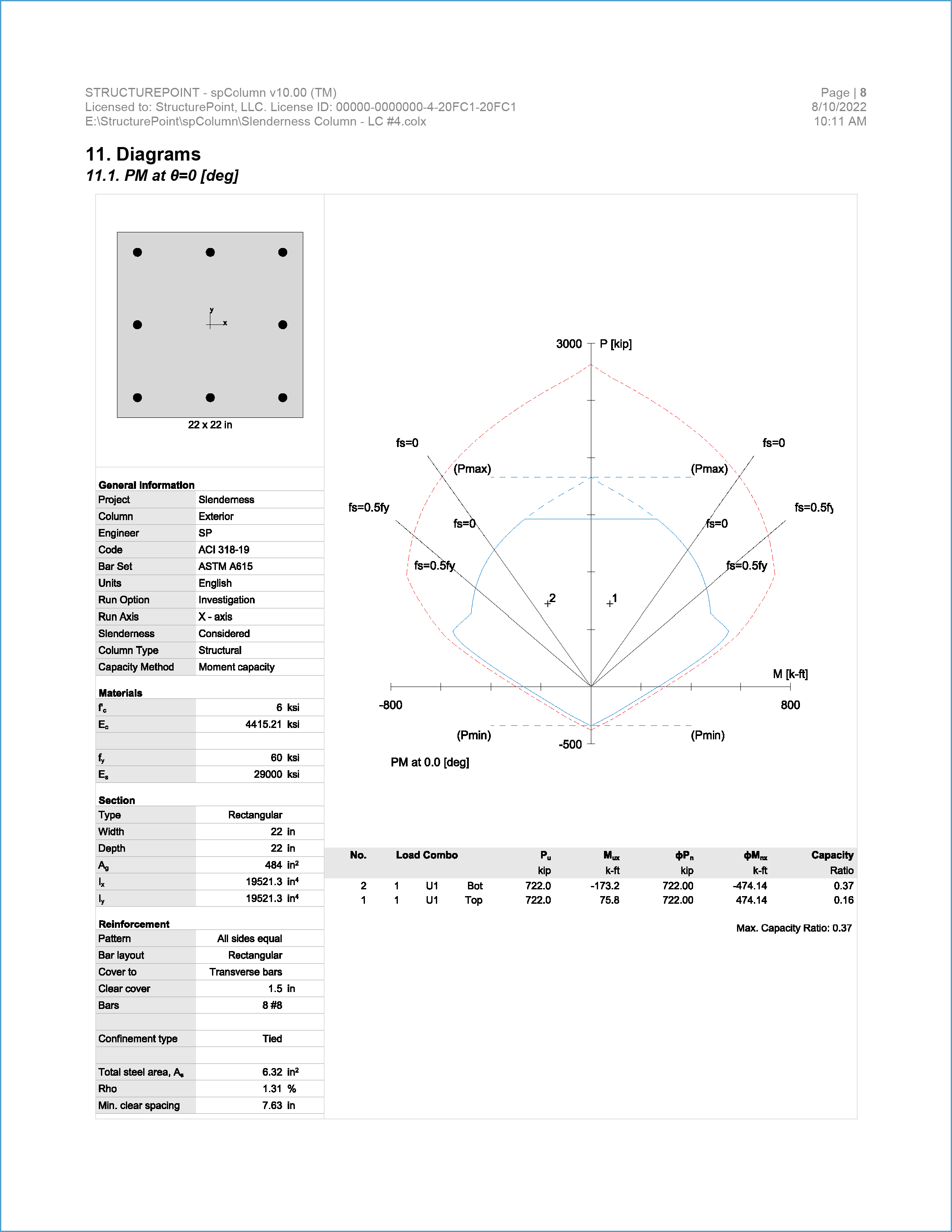

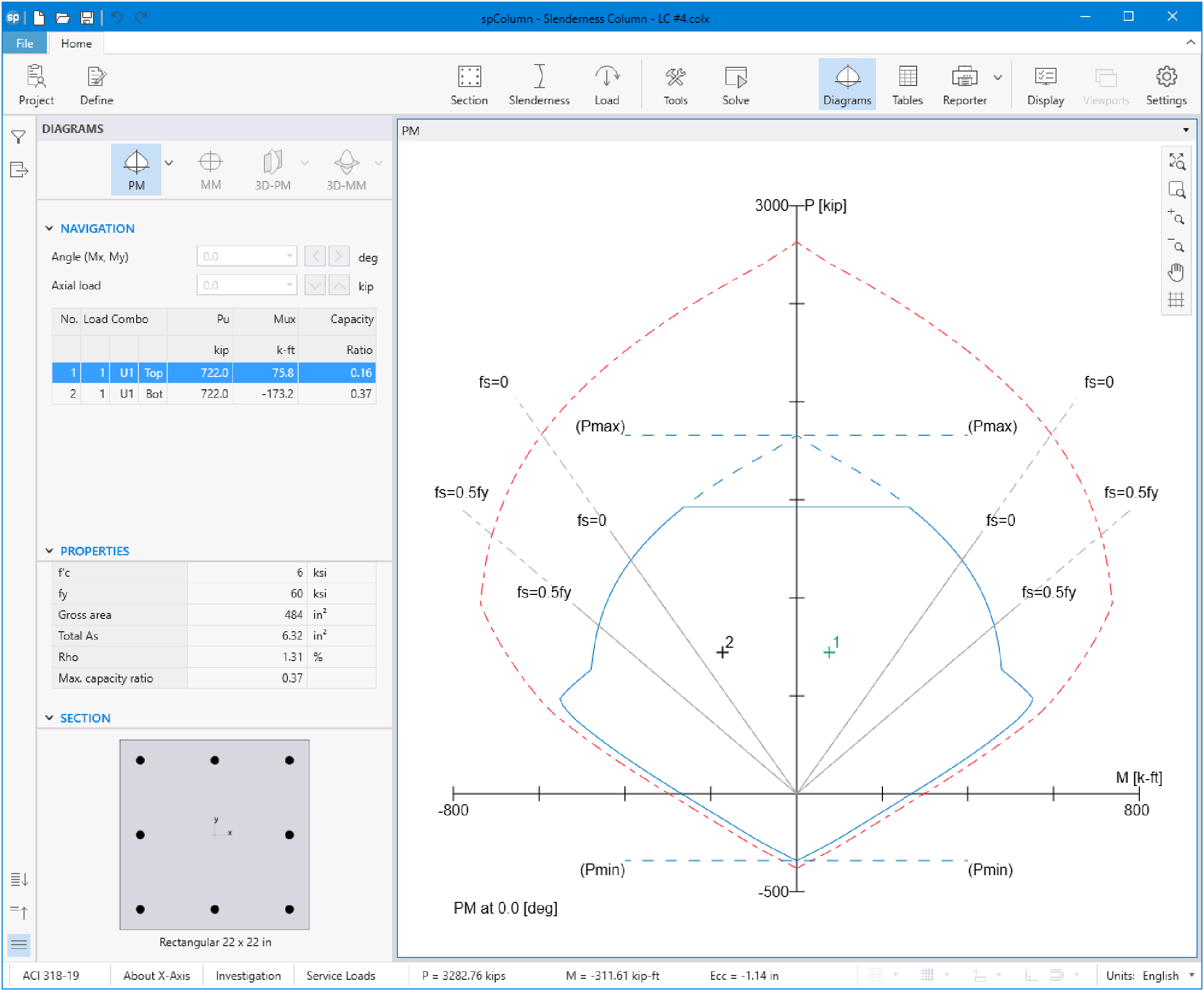

15 Interaction Diagram

Figure 15 - Column Section Interaction Diagram about the X-Axis - Design Check for Load Combination 4 (spColumn)
