5. Serviceability Requirements (Deflection Check)

Since the slab thickness was selected based on the minimum slab thickness tables in ACI 318-14, the deflection calculations are not required. However, the calculations of immediate and time-dependent deflections are covered in this section for illustration and comparison with spSlab model results.

5.1. Immediate (Instantaneous) Deflections

The calculation of deflections for two-way slabs is challenging even if linear elastic behavior can be assumed. Elastic analysis for three service load levels (D, D + Lsustained, D+LFull) is used to obtain immediate deflections of the two-way slab in this example. However, other procedures may be used if they result in predictions of deflection in reasonable agreement with the results of comprehensive tests.

ACI 318-14 (24.2.3)

The effective moment of inertia (Ie) is used to account for the cracking effect on the flexural stiffness of the slab. Ie for uncracked section (Mcr > Ma) is equal to Ig. When the section is cracked (Mcr < Ma), then the following equation should be used:

ACI 318-14 (Eq. 24.2.3.5a)

Where:

Ma

=

Maximum moment in member due to service loads at stage deflection is calculated.

The values of the maximum moments for the three service load levels are calculated from structural analysis as shown previously in this document. These moments are shown in Figure 23.

23

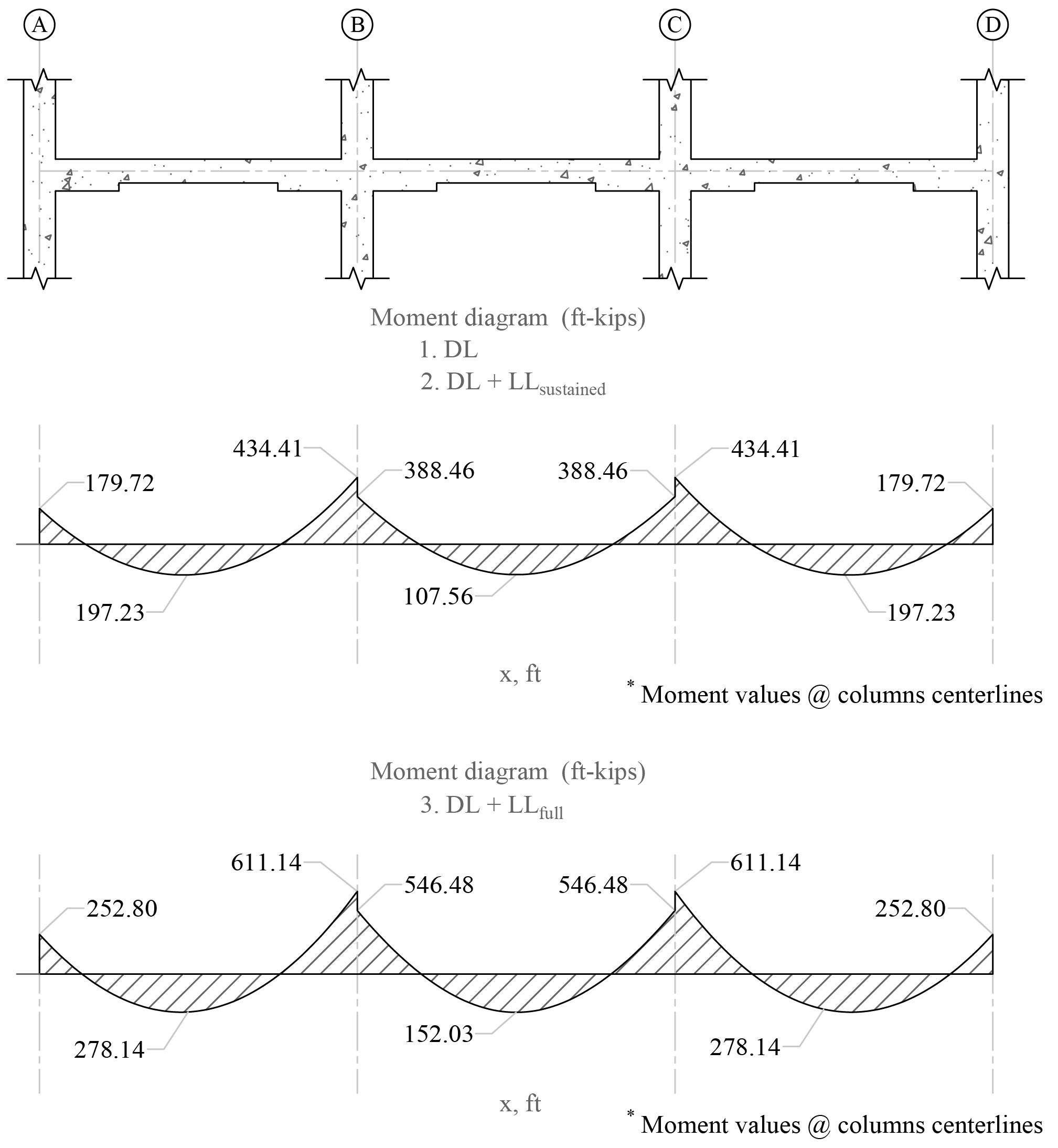

Figure 23 - Maximum Moments for the Three Service Load Levels (No live load is sustained in this example)

For positive moment (midspan) section:

Mcr

=

cracking moment.

ACI 318-14 (Eq. 24.2.3.5b)

fr

=

Modulus of rapture of concrete.

ACI 318-14 (Eq. 19.2.3.1)

Ig

=

Moment of inertia of the gross uncracked concrete section

yt

=

Distance from centroidal axis of gross section, neglecting reinforcement, to tension face, in.

Icr

=

moment of inertia of the cracked section transformed to concrete.

PCA Notes on ACI 318-11 (9.5.2.2)

As calculated previously, the positive reinforcement for the end span frame strip is 23 #6 bars located at 1.125 in. along the section from the bottom of the slab. Two of these bars are not continuous and will be conservatively excluded from the calculation of Icr since they might not be adequately developed or tied (21 bars are used). Figure 24 shows all the parameters needed to calculate the moment of inertia of the cracked section transformed to concrete at midspan.

24

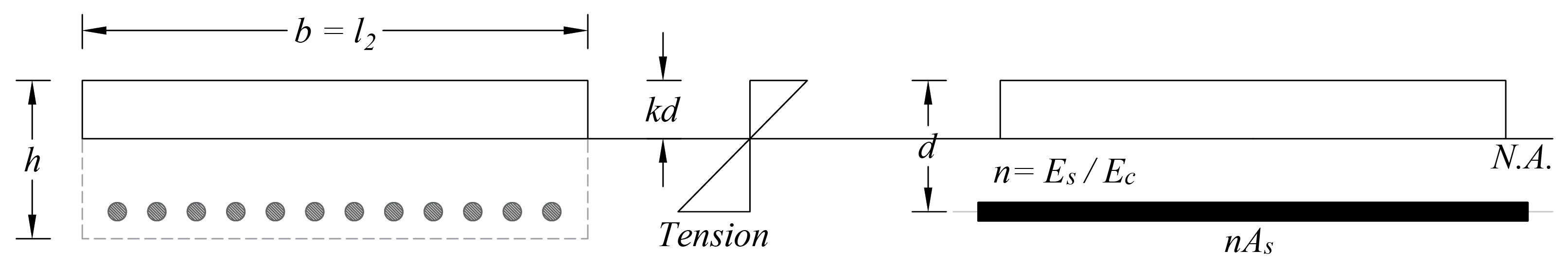

Figure 24 - Cracked Transformed Section (Positive Moment Section)

Ecs

=

Modulus of elasticity of slab concrete.

ACI 318-14 (19.2.2.1.a)

PCA Notes on ACI 318-11 (Table 10-2)

PCA Notes on ACI 318-11 (Table 10-2)

PCA Notes on ACI 318-11 (Table 10-2)

PCA Notes on ACI 318-11 (Table 10-2)

For negative moment section (near the interior support of the end span):

The negative reinforcement for the end span frame strip near the interior support is 32 #6 bars located at 1.125 in. along the section from the top of the slab.

ACI 318-14 (Eq. 24.2.3.5b)

ACI 318-14 (Eq. 19.2.3.1)

25

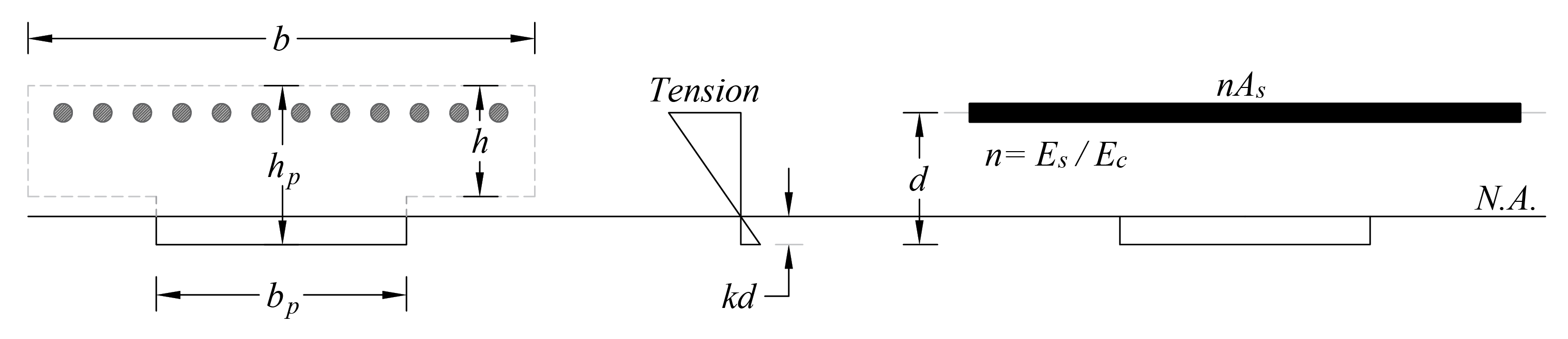

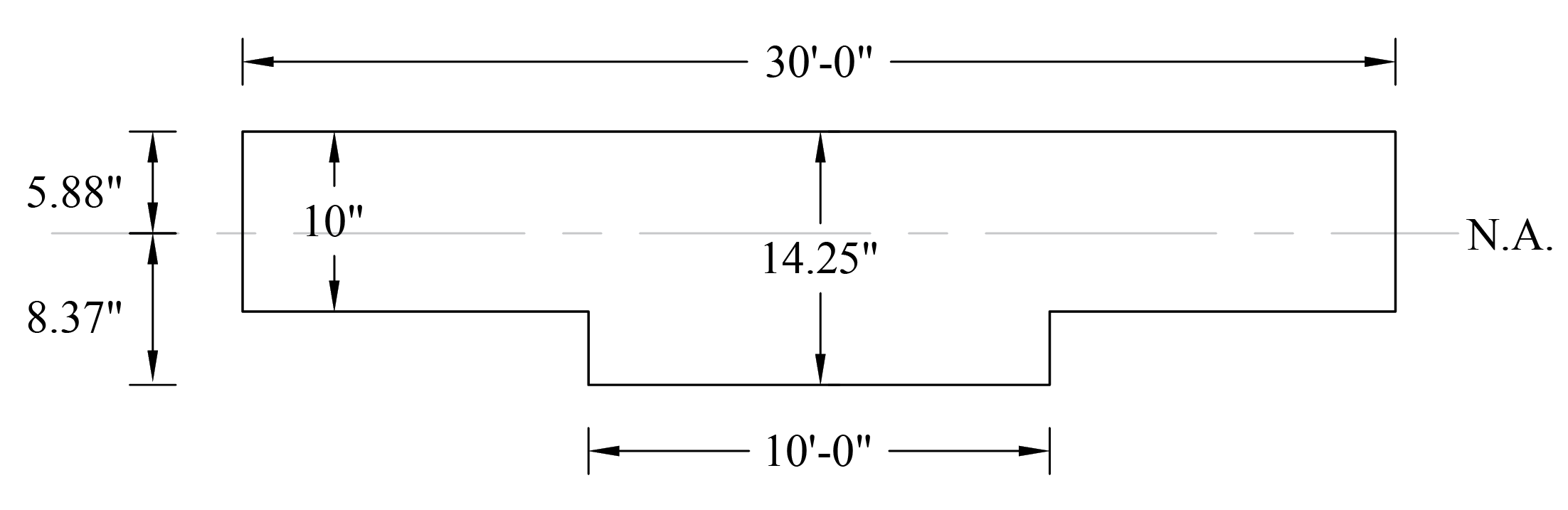

Figure 25 - Ig Calculations for Slab Section Near Support

ACI 318-14 (19.2.2.1.a)

PCA Notes on ACI 318-11 (Table 10-2)

PCA Notes on ACI 318-11 (Table 10-2)

PCA Notes on ACI 318-11 (Table 10-2)

PCA Notes on ACI 318-11 (Table 10-2)

26

Figure 26 - Cracked Transformed Section (Negative Moment Section)


The effective moment of inertia procedure described in the Code is considered sufficiently accurate to estimate deflections. The effective moment of inertia, Ie, was developed to provide a transition between the upper and lower bounds of Ig and Icr as a function of the ratio Mcr/Ma. For conventionally reinforced (nonprestressed) members, the effective moment of inertia, Ie, shall be calculated by Eq. (24.2.3.5a) unless obtained by a more comprehensive analysis.

Ie shall be permitted to be taken as the value obtained from Eq. (24.2.3.5a) at midspan for simple and continuous spans, and at the support for cantilevers.

ACI 318-14 (24.2.3.7)

For continuous one-way slabs and beams. Ie shall be permitted to be taken as the average of values obtained from Eq. (24.2.3.5a) for the critical positive and negative moment sections.

ACI 318-14 (24.2.3.6)

For the middle span (span with two ends continuous) with service load level (D+LLfull):

Since Mcr = 401.42 ft-kips < Ma = 546.48 ft-kips

ACI 318-14 (24.2.3.5a)

Where Ie- is the effective moment of inertia for the critical negative moment section (near the support).

Where Ie+ is the effective moment of inertia for the critical positive moment section (midspan).

Since midspan stiffness (including the effect of cracking) has a dominant effect on deflections, midspan section is heavily represented in calculation of Ie and this is considered satisfactory in approximate deflection calculations. Both the midspan stiffness (Ie+) and averaged span stiffness (Ie,avg) can be used in the calculation of immediate (instantaneous) deflection.

The averaged effective moment of inertia (Ie,avg) is given by:

PCA Notes on ACI 318-11 (9.5.2.4(1))

PCA Notes on ACI 318-11 (9.5.2.4(1))

However, these expressions lead to improved results only for continuous prismatic members. The drop panels in this example result in non-prismatic members and the following expressions should be used according to ACI 318-89:

ACI 435R-95 (2.14)

For the middle span (span with two ends continuous) with service load level (D+LLfull):

ACI 435R-95 (2.14)

For the end span (span with one end continuous) with service load level (D+LLfull):

Where:

Ie,l-

=

The effective moment of inertia for the critical negative moment section near the left support.

Ie,r-

=

The effective moment of inertia for the critical negative moment section near the right support.

Ie+

=

The effective moment of inertia for the critical positive moment section (midspan).

Table 6 provides a summary of the required parameters and calculated values needed for deflections for exterior and interior spans.

Table 6 - Averaged Effective Moment of Inertia Calculations

For Frame Strip

Span

zone

Ig
(in.4)

Icr
(in.4)

Ma, (ft-kip)

Mcr
(k-ft)

Ie (in.4)

Ie,avg (in.4)

D

D +
LLSus

D +
Lfull

D

D +
LLSus

D +
Lfull

D

D +
LLSus

D +
Lfull

Ext

Left

53,445

10,476

179.72

179.72

252.80

401.42

53,445

53,445

53,445

37,190

37,190

24,577

Midspan

30,000

3,800

197.23

197.23

278.14

265.17

30,000

30,000

26,502

Right

53,445

10,476

434.41

434.41

611.14

401.42

44,379

44,379

22,653

Int

Left

53,445

10,476

388.46

388.46

546.48

401.42

53,445

53,445

27,506

41,723

41,723

28,753

Mid

30,000

3,800

107.56

107.56

152.03

265.17

30,000

30,000

30,000

Right

53,445

10,476

388.46

388.46

546.48

401.42

53,445

53,445

27,506

Deflections in two-way slab systems shall be calculated taking into account size and shape of the panel, conditions of support, and nature of restraints at the panel edges. For immediate deflections in two-way slab systems, the midpanel deflection is computed as the sum of deflection at midspan of the column strip or column line in one direction (Δcx or Δcy) and deflection at midspan of the middle strip in the orthogonal direction (Δmx or Δmy). Figure 27 shows the deflection computation for a rectangular panel. The average Δ for panels that have different properties in the two direction is calculated as follows:



PCA Notes on ACI 318-11 (9.5.3.4 Eq. 8)

27

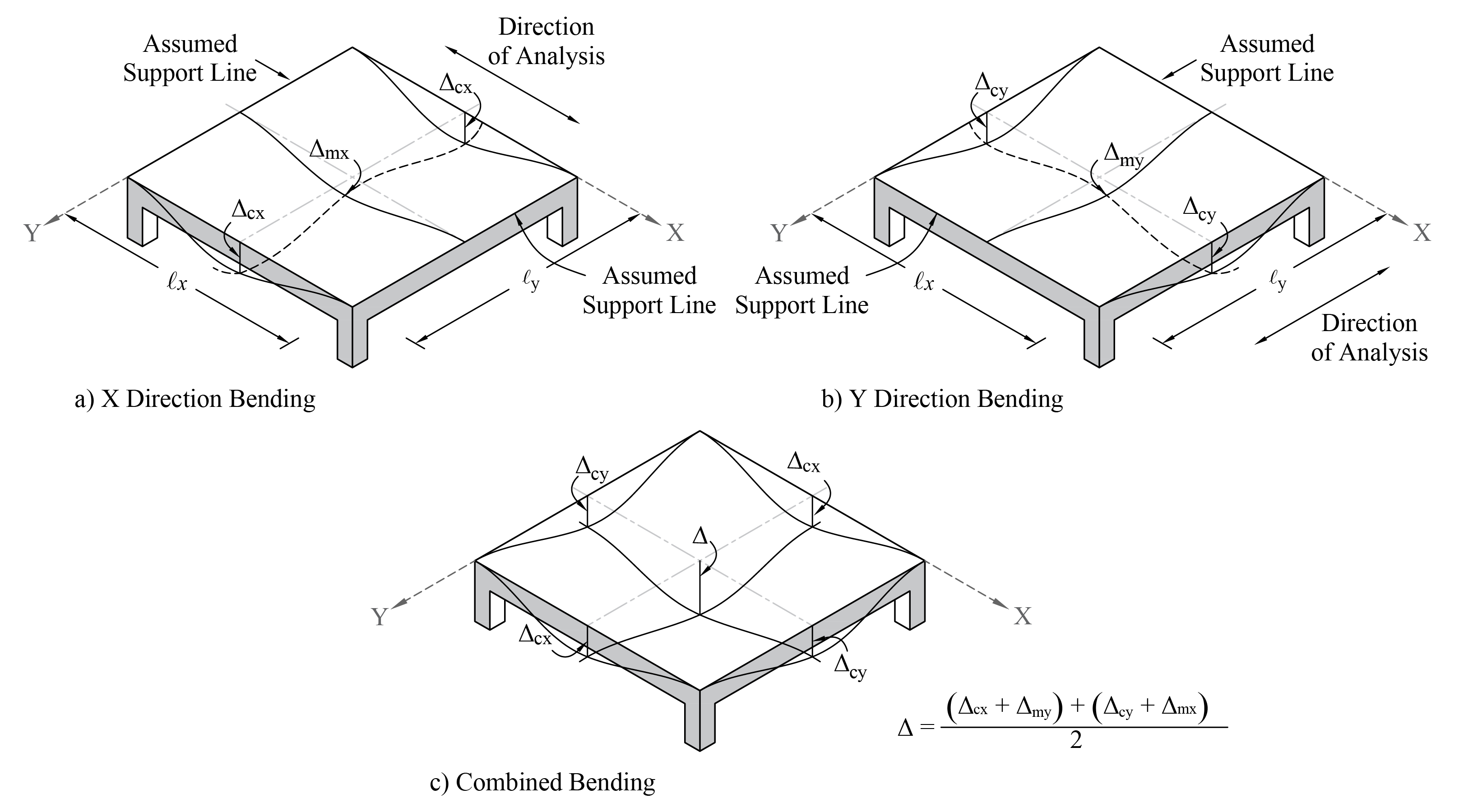

Figure 27 - Deflection Computation for a Rectangular Panel

To calculate each term of the previous equation, the following procedure should be used. Figure 28 shows the procedure of calculating the term Δcx. Same procedure can be used to find the other terms.

28

Figure 28 – Δcx Calculation Procedure

For exterior span - service dead load case:

PCA Notes on ACI 318-11 (9.5.3.4 Eq. 10)

Where:

Δframe_fixed

=

Deflection of column strip assuming fixed-end condition.

ACI 318-14 (19.2.2.1.a)

Iframe,averaged

=

The averaged effective moment of inertia (Ie,avg) for the frame strip for service dead load case from Table 6 = 37,190 in.4

PCA Notes on ACI 318-11 (9.5.3.4 Eq. 11)

For this example and like in the spSlab program, the effective moment of inertia at midspan will be used.

LDFc is the load distribution factor for the column strip. The load distribution factor for the column strip can be found from the following equation:

And the load distribution factor for the middle strip can be found from the following equation:

For the end span, LDF for exterior negative region (LDFL¯), interior negative region (LDFR¯), and positive region (LDFL) are 1.00, 0.75, and 0.60, respectively (From Table 2 of this document). Thus, the load distribution factor for the column strip for the end span is given by:

Ic,g

=

The gross moment of inertia (Ig) for the column strip for service dead load = 15,000 in.4

PCA Notes on ACI 318-11 (9.5.3.4 Eq. 12)

Where:

θc,L

=

Rotation of the left support

(Mnet,L)frame

=

179.72 ft-kips = Net frame strip negative moment of the left support

Kec

=

Effective column stiffness = 1,628.67 × 106 in.-lb (calculated previously).

PCA Notes on ACI 318-11 (9.5.3.4 Eq. 14)

Where:

Δθc,L

=

Midspan deflection due to rotation of left support.

(Ig / Ie)frame

=

Gross to effective moment of inertia ratio for frame strip.

Where:

θc,R

=

Rotation of the span right support.

(Mnet,R)frame

=

Net frame strip negative moment of the right support.

Where:

Δθc,R

=

Midspan deflection due to rotation of right support.

PCA Notes on ACI 318-11 (9.5.3.4 Eq. 9)

Following the same procedure, Δmx can be calculated for the middle strip. This procedure is repeated for the equivalent frame in the orthogonal direction to obtain Δcy, and Δmy for the end and middle spans for the other load levels (D+LLsus and D+LLfull).

Since in this example the panel is squared, Δcx = Δcy= 0.2170 in. and Δmx = Δmy= 0.1126 in.

The average Δ for the corner panel is calculated as follows:

Table 7 - Immediate (Instantaneous) Deflections in the x-direction

Column Strip

Middle Strip

Span

LDF

D

LDF

D

Δframe-fixed

(in.)

Δc-fixed

(in.)

θc1

(rad)

θc2

(rad)

Δθc1

(in.)

Δθc2

(in.)

Δcx

(in.)

Δframe-fixed

(in.)

Δm-fixed

(in.)

θm1

(rad)

θm2

(rad)

Δθm1

(in.)

Δθm2

(in.)

Δmx

(in.)

Ext

0.738

0.0995

0.1467

0.0013

0.0003

0.0481

0.0123

0.2070

0.263

0.0995

0.0522

0.0013

0.0003

0.0481

0.0123

0.1126

Int

0.675

0.0886

0.1197

-0.0003

-0.0003

-0.0110

-0.0110

0.0978

0.325

0.0886

0.0576

-0.0003

-0.0003

-0.0110

-0.0110

0.0357

Span

LDF

D+LLsus

LDF

D+LLsus

Δframe-fixed

(in.)

Δc-fixed

(in.)

θc1

(rad)

θc2

(rad)

Δθc1

(in.)

Δθc2

(in.)

Δcx

(in.)

Δframe-fixed

(in.)

Δm-fixed

(in.)

θm1

(rad)

θm2

(rad)

Δθm1

(in.)

Δθm2

(in.)

Δmx

(in.)

Ext

0.738

0.0995

0.1467

0.0013

0.0003

0.0481

0.0123

0.2070

0.263

0.0995

0.0522

0.0013

0.0003

0.0481

0.0123

0.1126

Int

0.675

0.0886

0.1197

-0.0003

-0.0003

-0.0110

-0.0110

0.0978

0.325

0.0886

0.0576

-0.0003

-0.0003

-0.0110

-0.0110

0.0357

Span

LDF

D+LLfull

LDF

D+LLfull

Δframe-fixed

(in.)

Δc-fixed

(in.)

θc1

(rad)

θc2

(rad)

Δθc1

(in.)

Δθc2

(in.)

Δcx

(in.)

Δframe-fixed

(in.)

Δm-fixed

(in.)

θm1

(rad)

θm2

(rad)

Δθm1

(in.)

Δθm2

(in.)

Δmx

(in.)

Ext

0.738

0.2128

0.2772

0.0019

0.0005

0.1023

0.0262

0.4057

0.263

0.2128

0.0987

0.0019

0.0005

0.1023

0.0262

0.2272

Int

0.675

0.1819

0.2455

-0.0005

-0.0005

-0.0224

-0.0224

0.2008

0.325

0.1819

0.1182

-0.0005

-0.0005

-0.0224

-0.0224

0.0735

Span

LDF

LL

LDF

LL

Δcx

(in.)

Δmx

(in.)

Ext

0.738

0.1987

0.263

0.1146

Int

0.675

0.1030

0.325

0.0378

5.2. Time-Dependent (Long-Term) Deflections (Δlt)

The additional time-dependent (long-term) deflection resulting from creep and shrinkage (Δcs) may be estimated as follows:

PCA Notes on ACI 318-11 (9.5.2.5 Eq. 4)

The total time-dependent (long-term) deflection is calculated as:

CSA A23.3-04 (N9.8.2.5)

Where:

sust)Inst

=

Immediate (instantaneous) deflection due to sustained load, in.

ACI 318-14 (24.2.4.1.1)

total)lt

=

Time-dependent (long-term) total deflection, in.

total)Inst

=

Total immediate (instantaneous) deflection, in.

For the exterior span

ξ = 2, consider the sustained load duration to be 60 months or more.

ACI 318-14 (Table 24.2.4.1.3)

ρ` = 0, conservatively.



Table 8 shows long-term deflections for the exterior and interior spans for the analysis in the x-direction, for column and middle strips.

Table 8 - Long-Term Deflections

Column Strip

Span

sust)Inst (in.)

λΔ

Δcs (in.)

total)Inst (in.)

total)lt (in.)

Exterior

0.2070

2

0.4140

0.4057

0.8197

Interior

0.0978

2

0.1955

0.2008

0.3963

Middle Strip

Exterior

0.1126

2

0.2251

0.2272

0.4523

Interior

0.0357

2

0.0714

0.0735

0.1449
