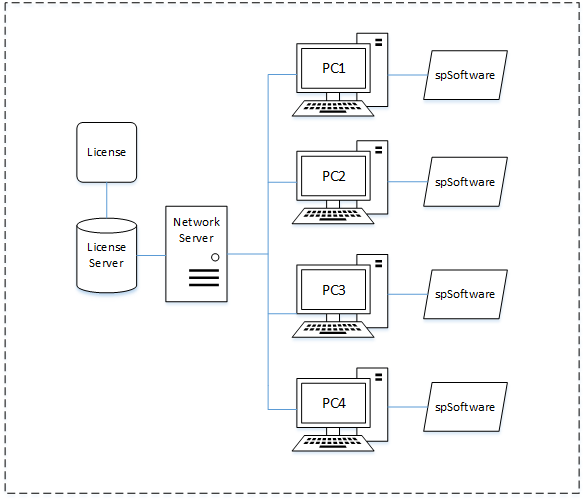

Network
A network (concurrent) license is the most widely used license type for StructurePoint software. This type of license uses a server/client setup that allows a specific number of users (seats) to run the protected application at the same time.
Standalone
A standalone (individual) license permits use of the protected application on a single computer. License management is done on that computer without the need for a network server.
Commuter
A commuter (field) license allows a traveler to check out a temporary authorization from the network to use the application on a laptop, and then check it back into the network when the traveler returns. A commuter license is included as an option for all network license applications or is granted by StructurePoint for remote use.

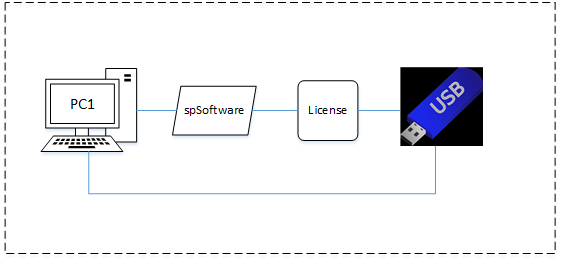

USB Key
USB (portable) licensing requires a USB Key (dongle) in order to check out a license and operate StructurePoint software.
StructurePoint programs are 32-bit applications that run on Microsoft Windows operating systems.
Operating System
Workstation computers: Windows 10/11 require administrator privileges during initial installation and license activation.
Server Computers: Windows Server 2016 or later is recommended as the license server in network license setup. For virtual servers, contact StructurePoint.
Network Requirements (Network License only)
• LAN or WAN running TCP/IP
• Sentinel RMS 8.5.2 for version 10 applications
• SentinelLM 7.2.0.23 or higher for non version 10 applications
