3.49View Support Reactions

Analyze/Support Reactions command allows you to view the applicable support reactions—forces (Fx, Fy, and Fz) and moments (Mx, My, and Mz). These results are referenced in the global coordinate system.

•From the Analyze menu, select Support Reactions. The box of Figure 3-40 appears.

•From the COMBINATION drop-down list, select the load combination whose results are to be displayed.

•From the FORMAT drop-down list, specify the format to present the numerical values—general, exponential (scientific), or floating point format.

•Use the scroll bars on the side of the list box, or the keyboard direction keys, to scroll through the list.

•To exit, choose Close from the Control-menu box of the box, press ENTER, or press ALT+F4.

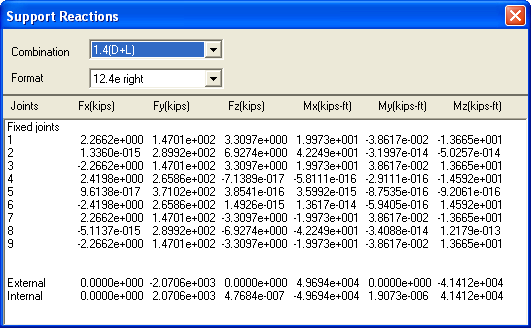

Figure 3-40 Support Reactions list box
