Analysis & Design

Analysis Methods

Equivalent Frame Method (EFM) of Analysis

spSlab utilizes the Equivalent Frame Method for the analysis and design of two-way slab systems, i.e. a slab system consisting of approximately rectangular panels with the ratio of longer-to-shorter span within a panel not exceeding 2.0, per American (ACI 318) and Canadian (CSA A23.3) concrete codes.

Slab Beams

The moment of inertia of the slab beam elements between the faces of the columns (or column capitals) is based on the uncracked section of the concrete including beams or drop panels. The moment of inertia from the face of the column (or capital) to the centerline of the column (or capital) is considered finite and is dependent on the transverse dimensions of the panel and support.

Columns

The computation of the column stiffness is more complicated as it utilizes the concept of an equivalent column. The stiffness of the equivalent column is affected by both the flexural stiffness of the columns and the torsional stiffness of the slabs or beams framing into the columns.

All applied loads are input as unfactored loads. There are no limitations imposed on the ratio of dead to live loads in the Equivalent Frame Method. Results of gravity load and lateral load analyses may be combined, however, the effects of cracking and reinforcement on stiffness must be accounted for in the lateral load analysis.

Load Patterns

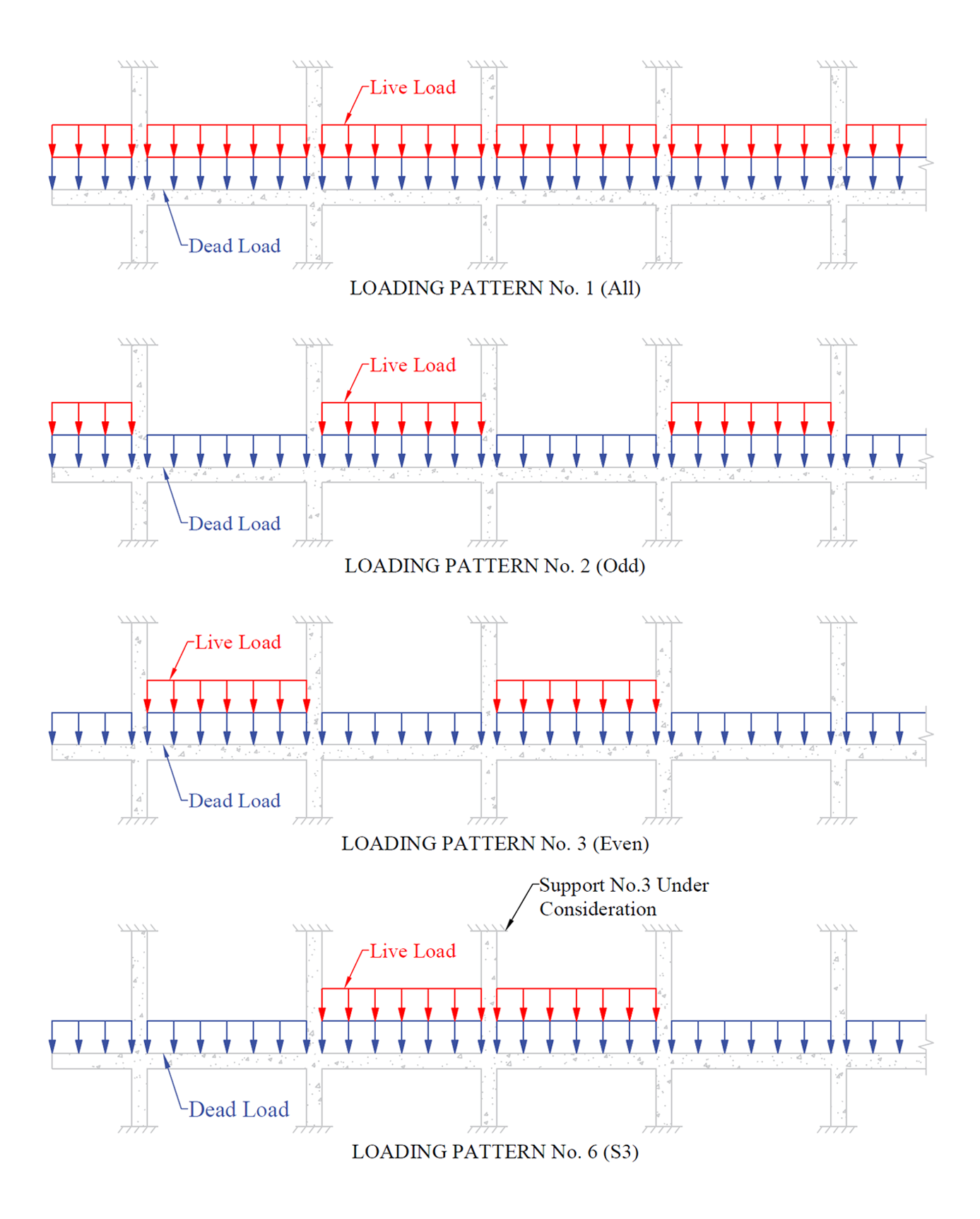

The analysis of floor systems requires the consideration of several loading configurations. To cover different loading scenarios the program generates live load case based on the following load patterns.

Column and Middle Strip Widths

ACI and CSA codes define the width of the column strip on each side of the column centerline as being one-fourth of the smaller of either the transverse or the longitudinal span. These widths are printed as part of the design results.

Two-Way (Punching) Shear

Two-way (punching) shear check considering the effects of columns (rectangular, round), drop panels, column capitals, longitudinal beams, transverse beams, and slab bands can be performed.

Punching Shear Check Around Columns

Punching Shear Check Around Drop Panels

One-Way (Beam) Shear Calculations

One-way (beam) shear check considering the effects of drop panels, column capitals, longitudinal beams, transverse beams, and slab bands can be performed.

Slab Shear Capacity Check by Considering Drop Panel Contribution

Design Methods

Area of Reinforcement

The program calculates the required area of reinforcement (top and bottom) based on the values of bending moment envelope within the clear span. For rectangular sections with no compression reinforcement, the design flexural strength of the column strip, middle strip and beam must equal the factored design moment.

Concentration and Additional Reinforcement

spSlab computes the fraction of the unbalanced moment, that must be transferred by flexure within an effective slab width (a band) equal to the column width plus one and one-half the slab or drop panel depth (1.5h) on either side of the column.

Structural Integrity Reinforcement

In continuous beams, including longitudinal beams in two-way slab systems, spSlab and spBeam produce, in design mode, reinforcement that satisfies ACI requirements for structural integrity. For the CSA code, the program also performs calculation of the amount of integrity reinforcement at slab column connections in design mode.

Corner Reinforcement

The amount of corner reinforcement is calculated from the moment per unit width intensity corresponding to the maximum positive moment in span. The code allows the corner reinforcement to be placed at top and bottom of the slab in bands parallel to the sides of the slab edges.
